Climate Control Unit Removal and Installation

Climate Control Unit Removal and Installation

1. Remove the glove box housing.

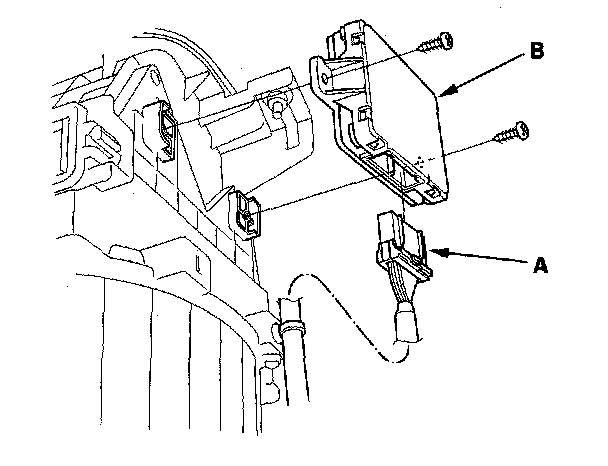

2. Disconnect the connector (A) from the climate control unit (B), then remove the self-tapping screws and the climate control unit.
3. Install the unit in the reverse order of removal. After installation, operate the various functions to see whether works properly.
4. Run the self-diagnostic function to confirm that there are no problems in the system.
