A/C Control Panel Removal and Installation
A/C Control Panel Removal and Installation 1.
Remove the center panel.
2.

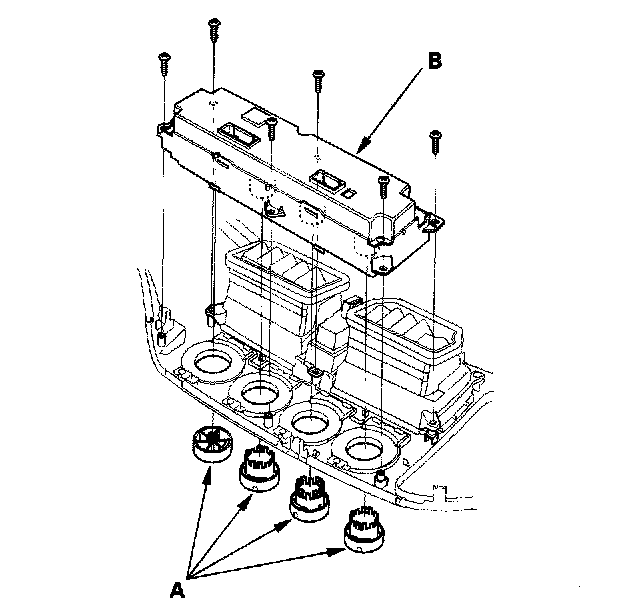

Remove the dials (A), the self-tapping screws, and the A/C control panel (B).
3.
Install the A/C control panel in the reverse order of removal. After installation, operate the various functions to make sure they work properly.
4.
Run the self-diagnostic function to confirm that there are no problems in the system.
