Heating/Air Conditioning
Power Transistor Test1. Remove the passenger's dashboard under cover.
2. Disconnect the 4P connector from the power transistor.

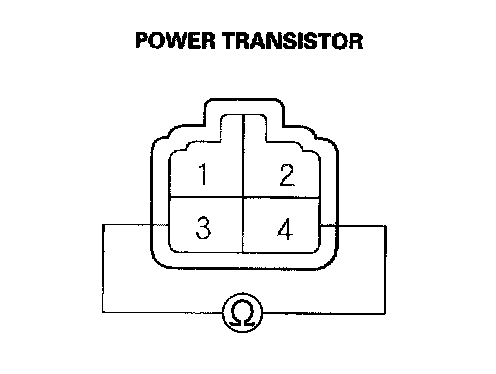

3. Measure the resistance between the No. 3 and No. 4 terminals of the power transistor. It should be about 1.5 kOhms.
- If the resistance is within the specifications, go to step 4.
- If the resistance is not within the specifications, replace the power transistor.

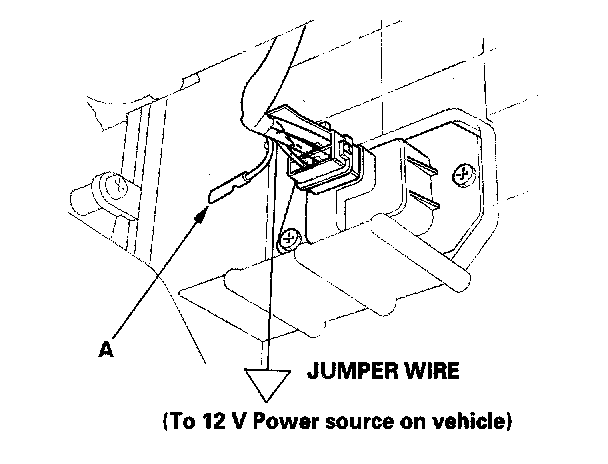

4. Carefully release the lock tab on the No. 1 terminal (BLU/YEL) (A) in the 4P connector, then remove the terminal and insulate it from body ground.
5. Reconnect the 4P connector to the power transistor.
6. Make sure the BLU/YEL wire is completely isolated, then supply 12 volts to the No. 1 cavity with a jumper wire.
7. Turn the ignition switch ON (II), and check that the blower motor runs.
- If the blower motor does not run, replace the power transistor.
- If the blower motor runs, the power transistor is OK.
