Ambient Light Test/Replacement

Ambient Light Test/Replacement

EX, EX-L, EX-L Touring models

1. Remove the front individual map light.

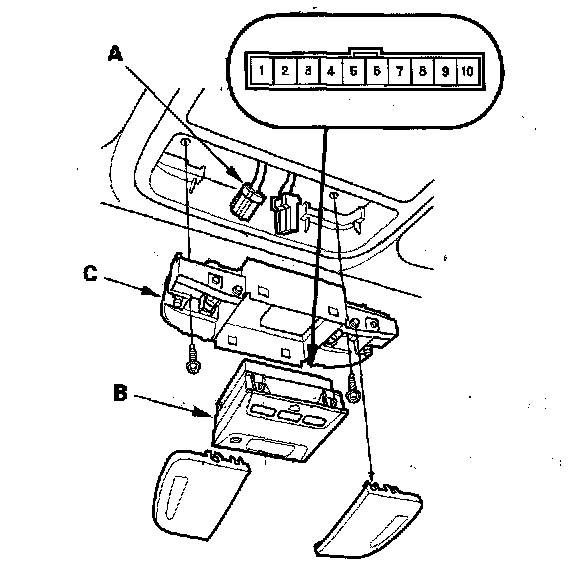

2. Disconnect the 10P connector (A) from the ambient light/HomeLink unit (B), then remove the ambient light/HomeLink unit from the map light housing (C).
3. Connect battery power to the No.4 terminal and ground to the No.1 terminal. The ambient light should turn on. If the light does not turn on, replace the ambient light/HomeLink unit.
