Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Removal/Installation

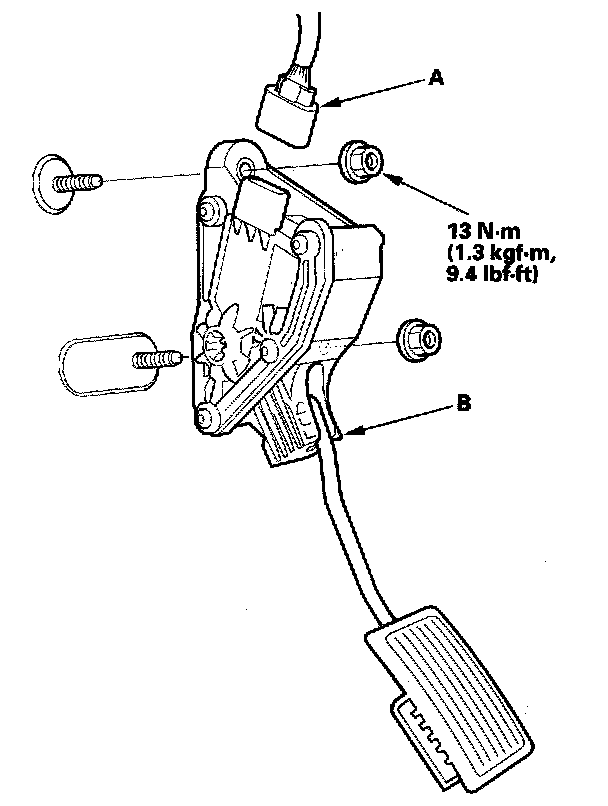

Without Power Adjustable Pedals

1. Disconnect accelerator pedal position (APP) sensor A/B 6P connector (A).
2. Remove the accelerator pedal (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal assembly.

3. Install the accelerator pedal in the reverse order of removal.

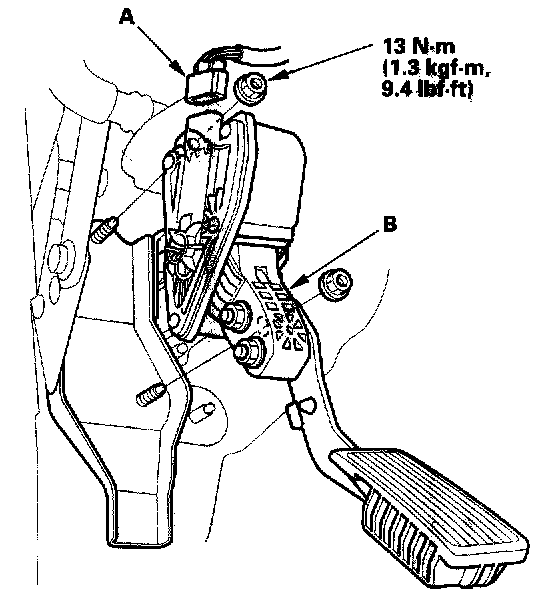

With Power Adjustable Pedals

1. Disconnect accelerator pedal position (APP) sensor A/B 6P connector (A).
2. Remove the accelerator pedal (B).

NOTE: The APP sensor is not available separately. Do not disassemble the accelerator pedal assembly.

3. Install the accelerator pedal in the reverse order of removal.
4. Adjust the brake pedal height.
