Scan Tool Testing and Procedures

HDS Inputs and Commands

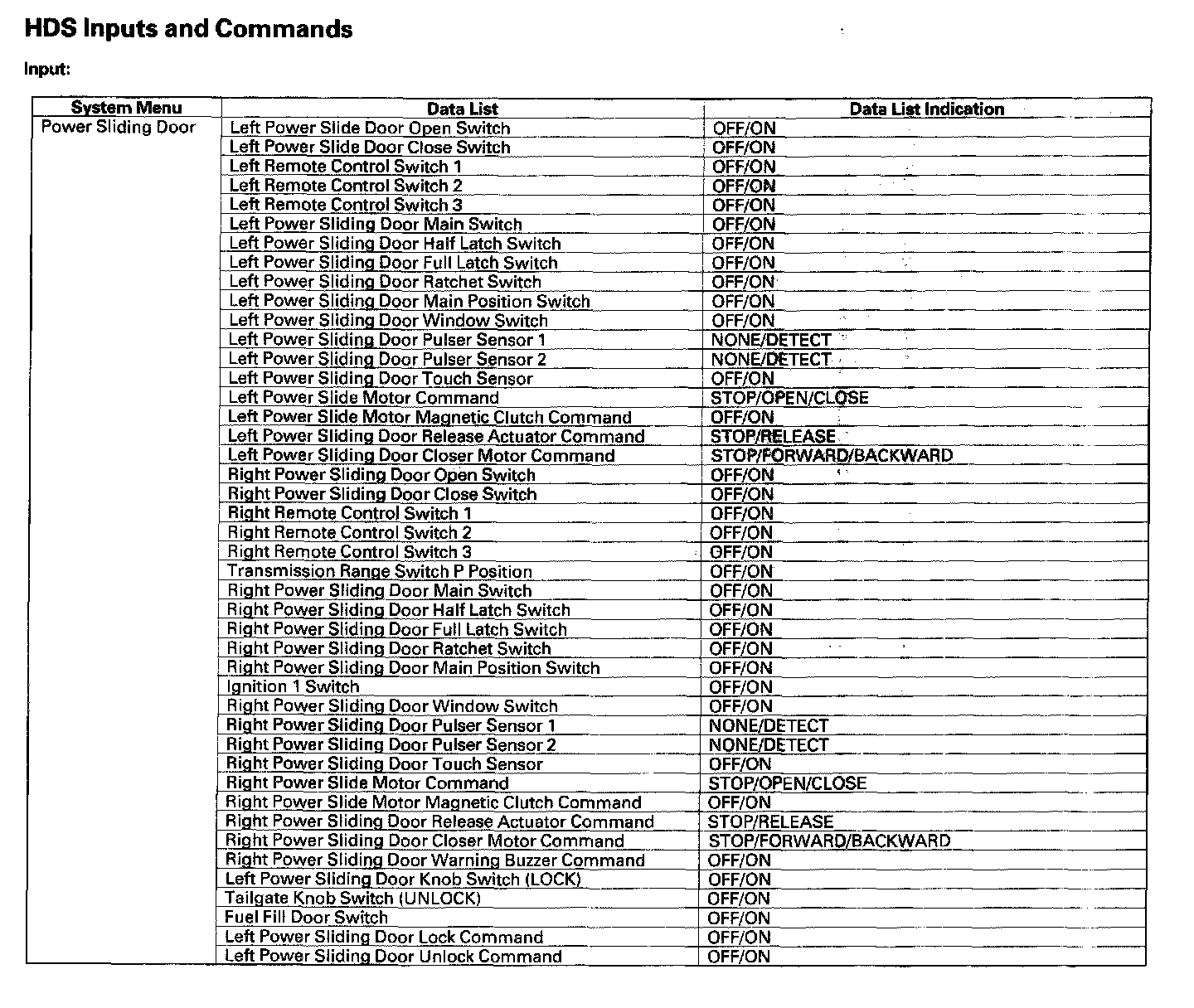

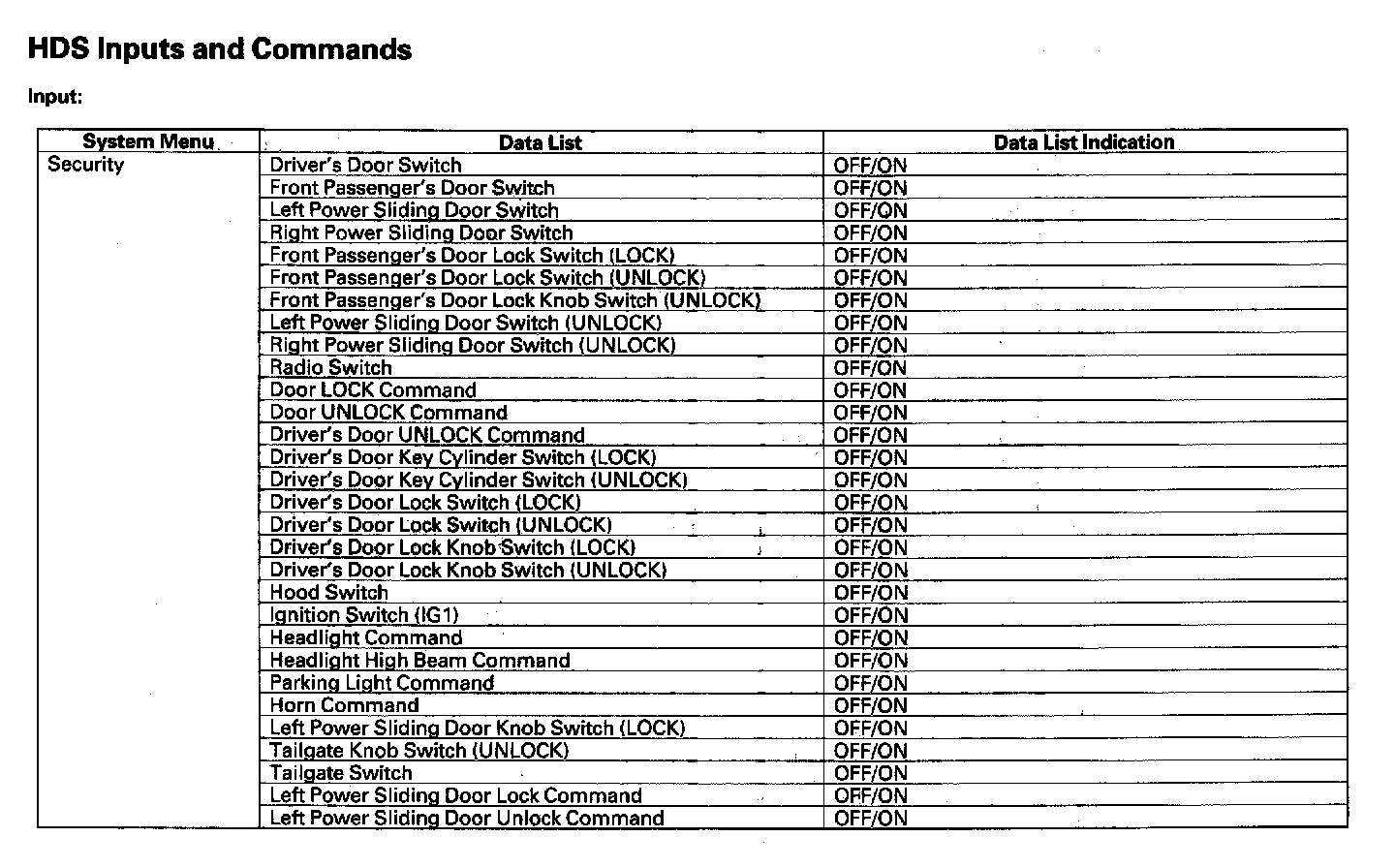

HDS Inputs And Commands - Input Part 1:

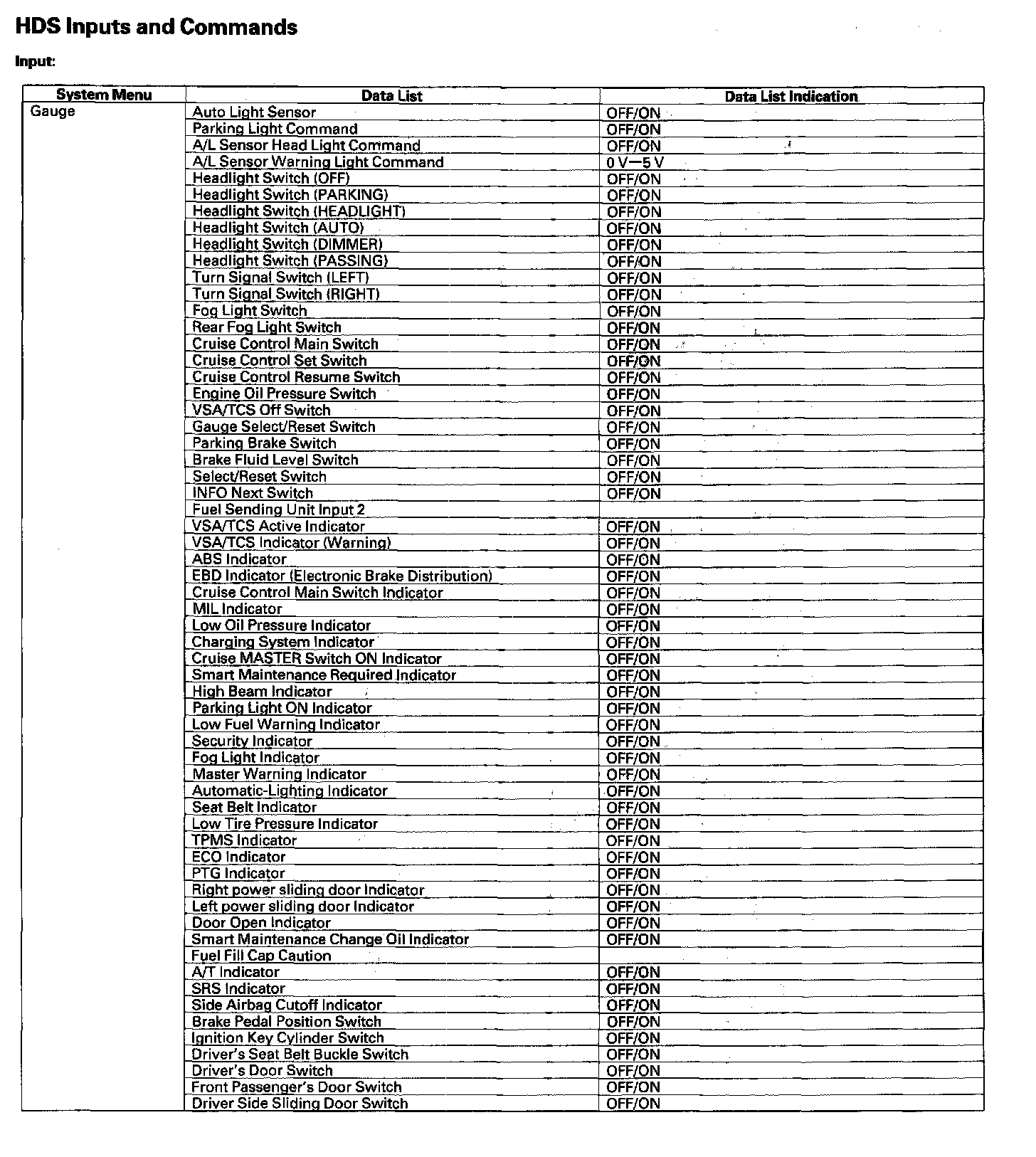

HDS Inputs And Commands - Input Part 2:

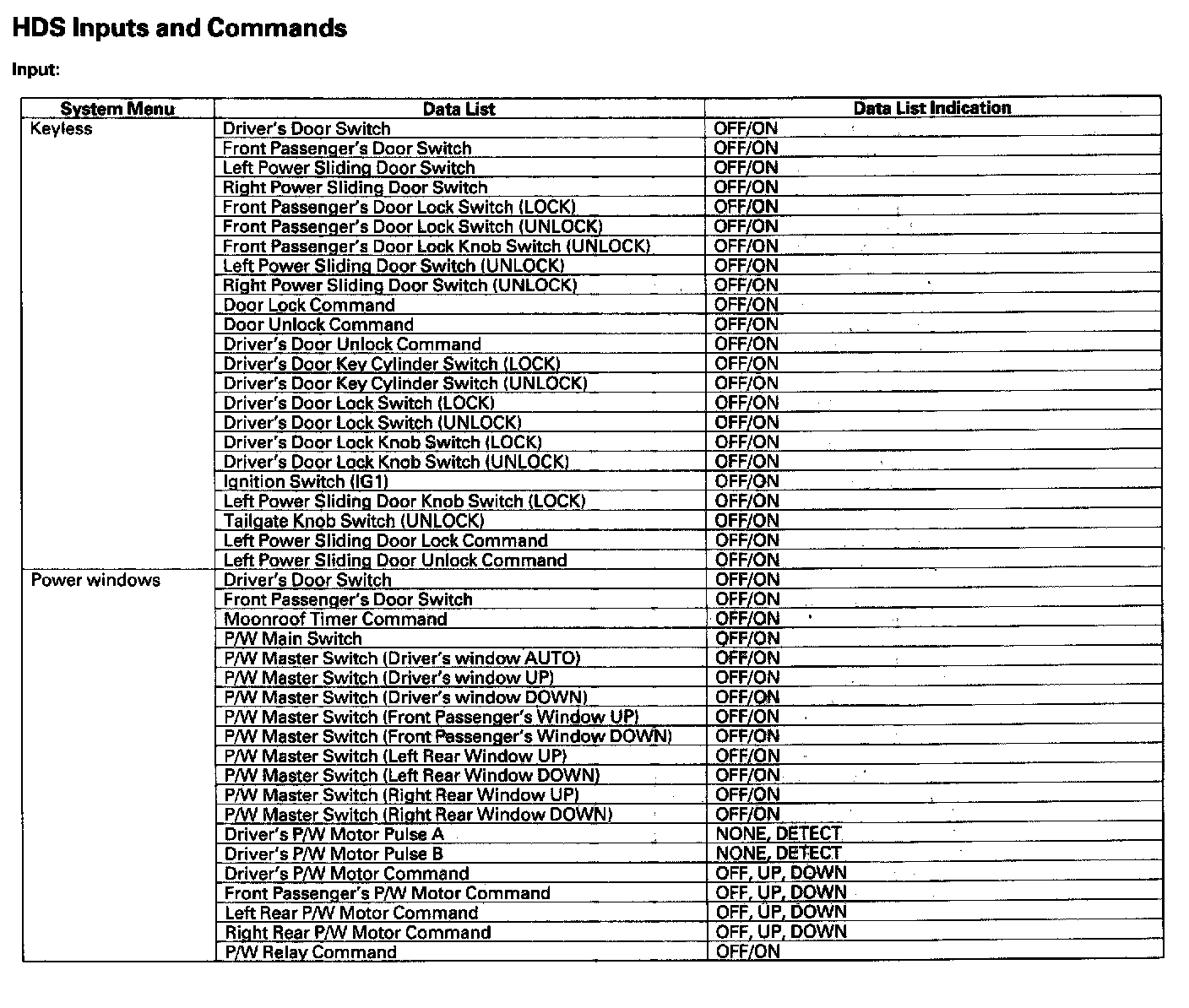

HDS Inputs And Commands - Input Part 3:

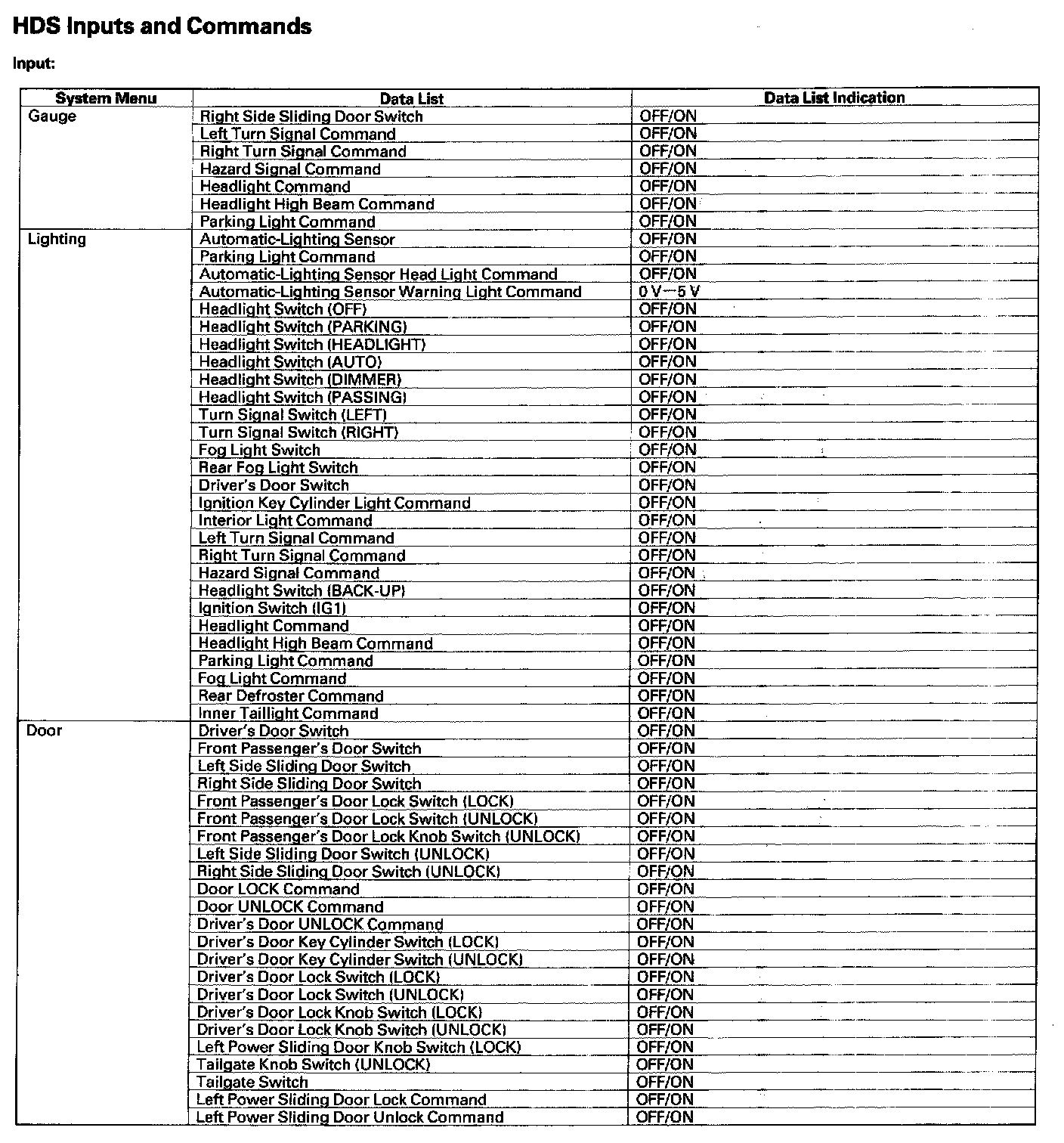

HDS Inputs And Commands - Input Part 4:

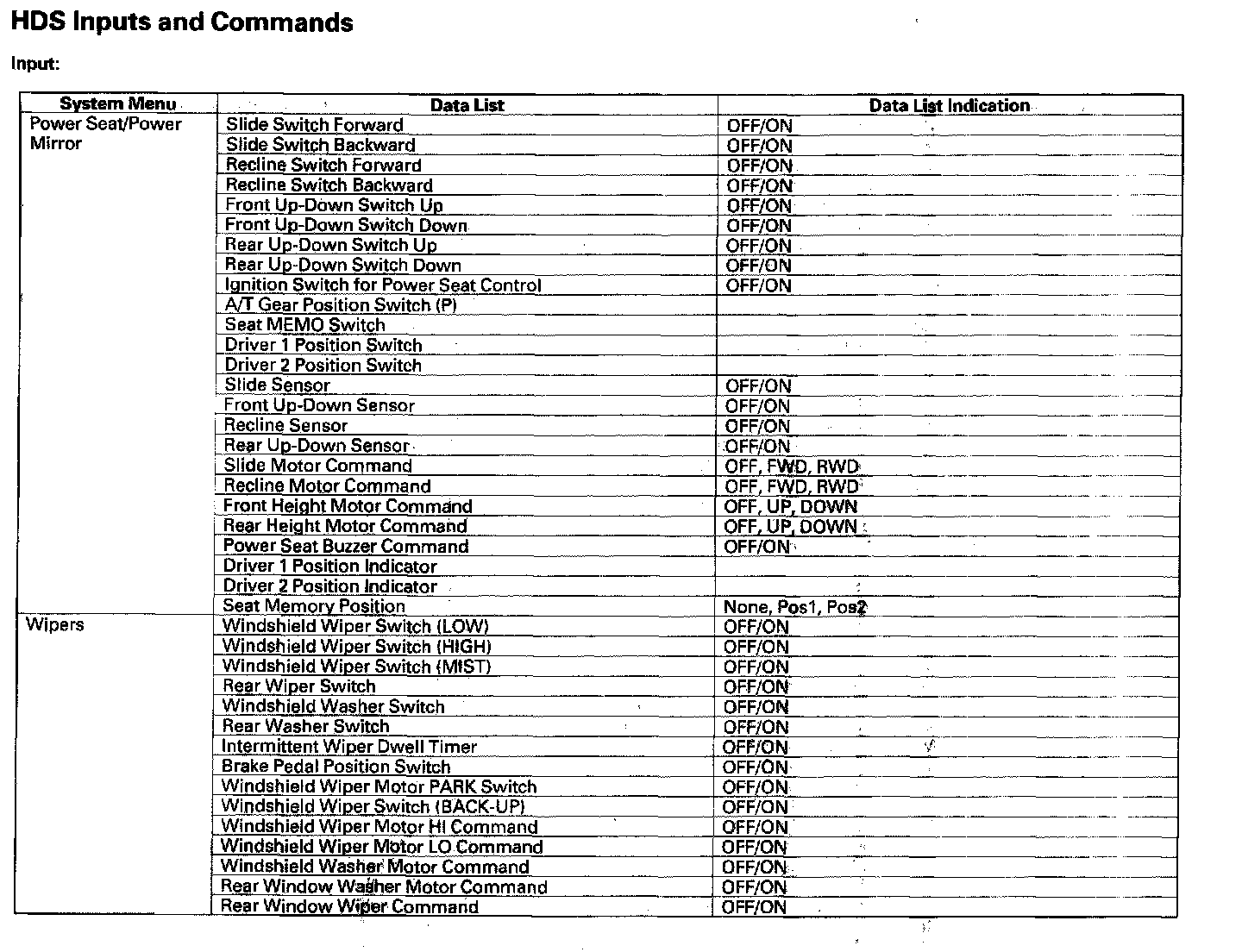

HDS Inputs And Commands - Input Part 5:

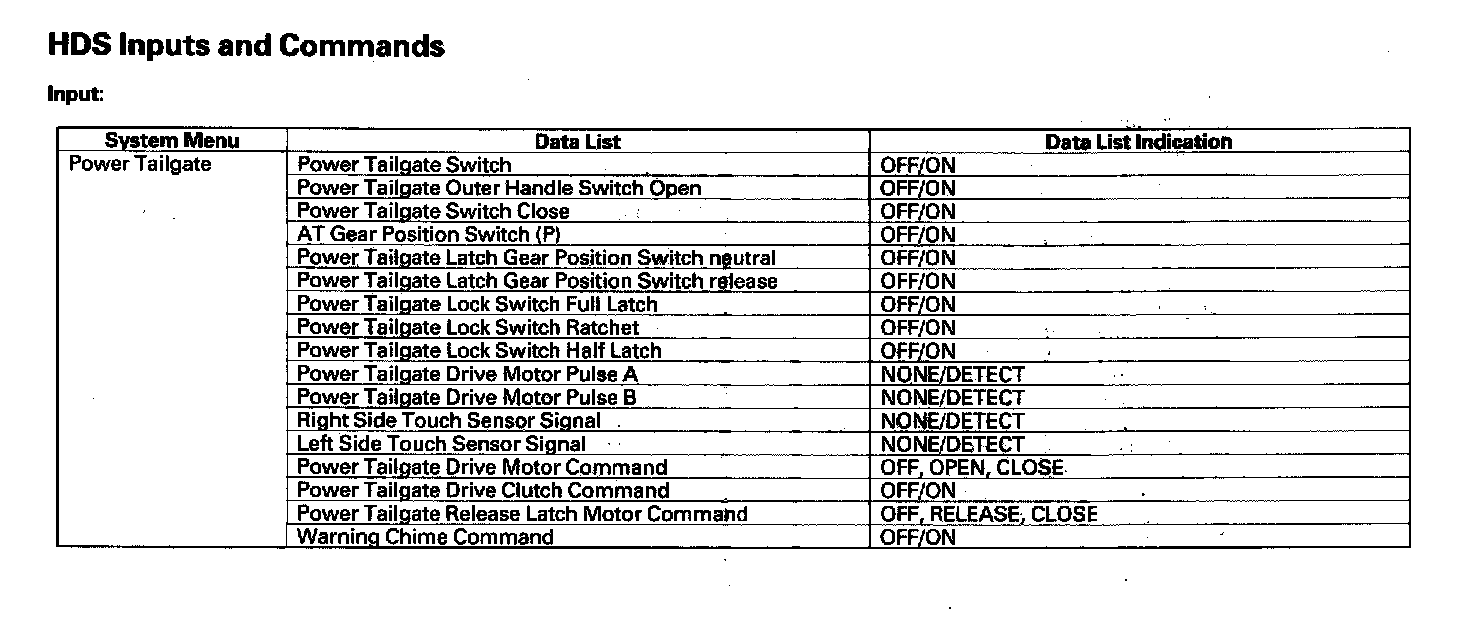

HDS Inputs And Commands - Input Part 6:




HDS Inputs And Commands - Input Part 7:

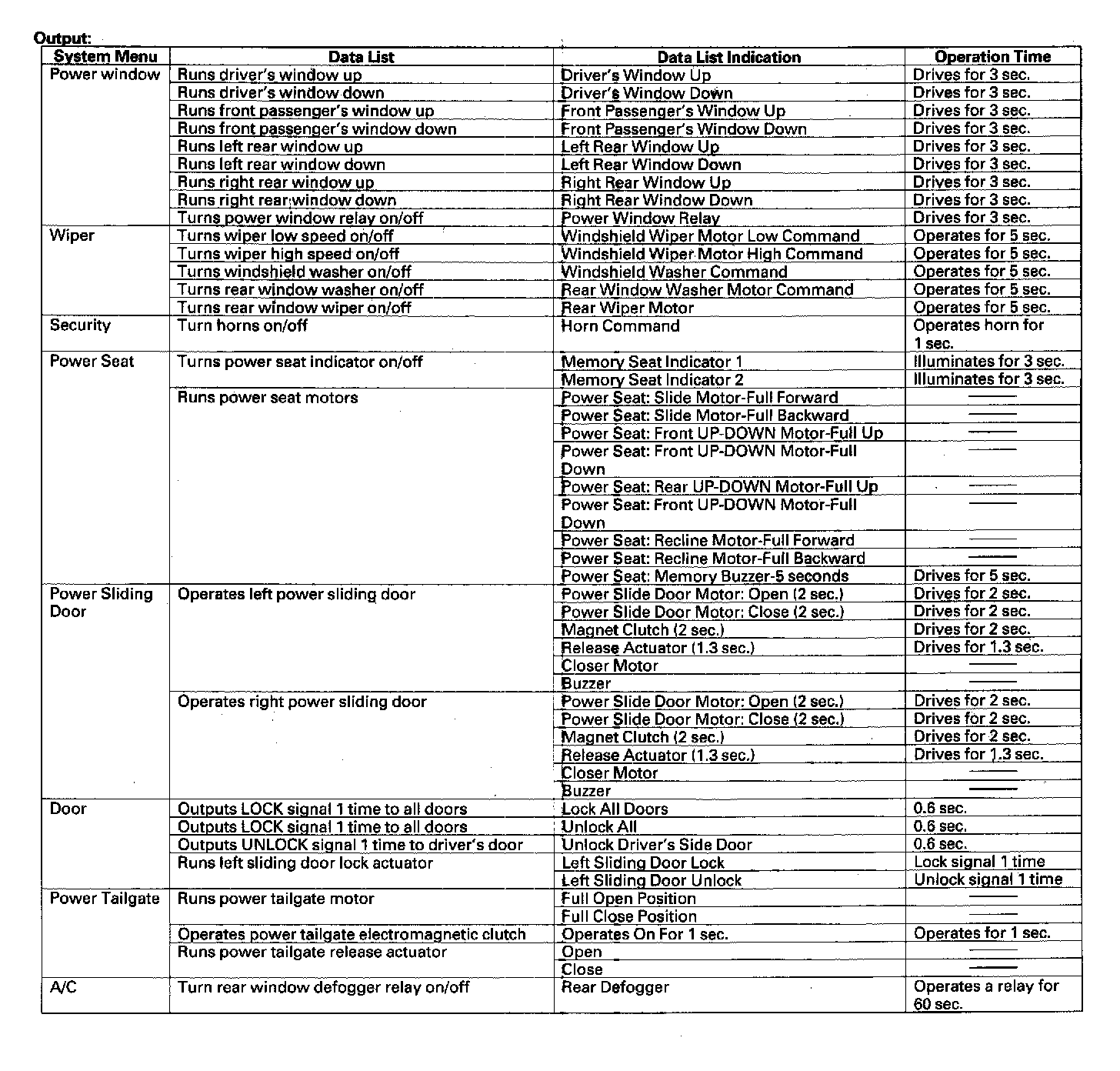

HDS Inputs And Commands - Output Part 1:

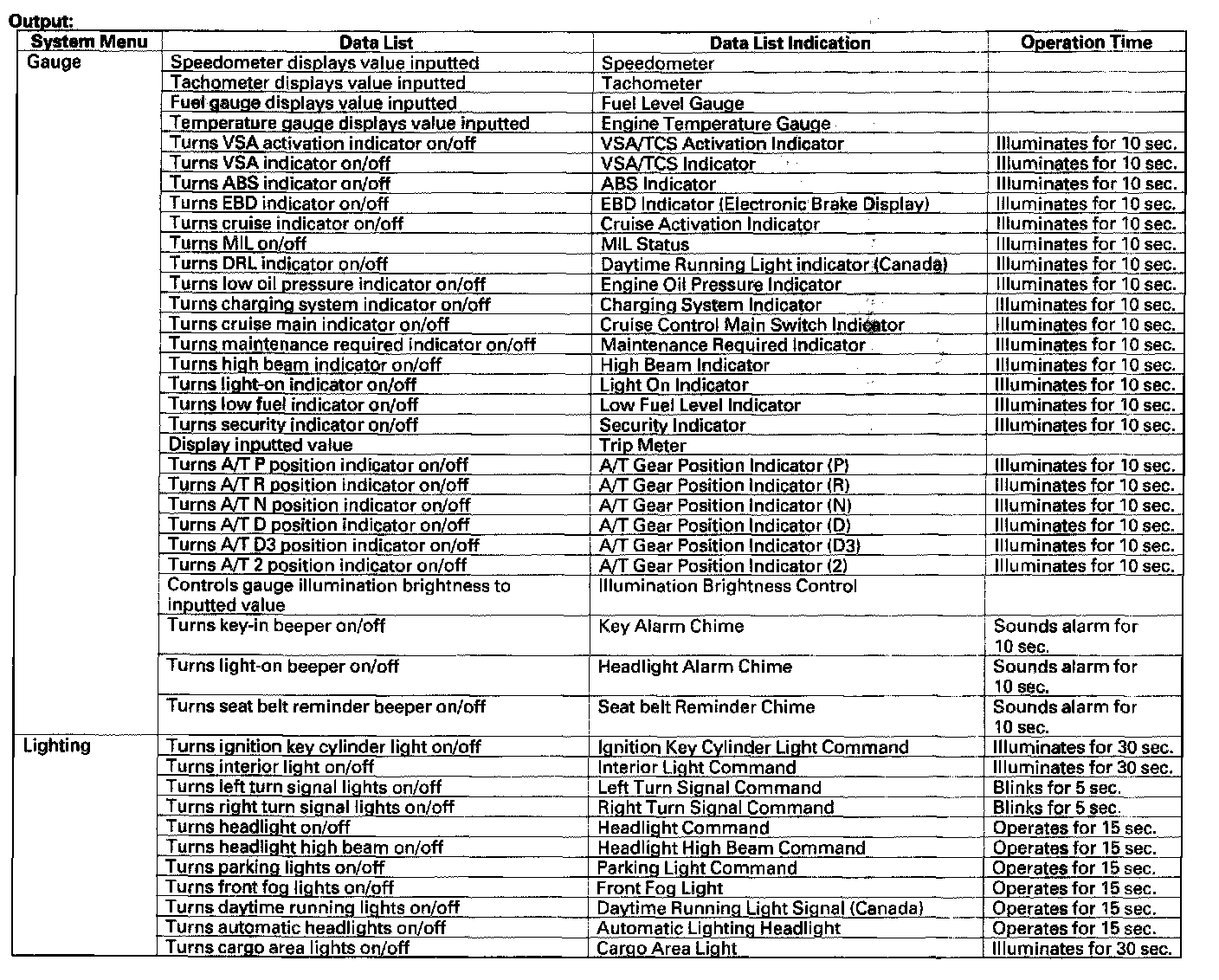

HDS Inputs And Commands - Output Part 2:
