Parking Assist Control Module: Testing and Inspection

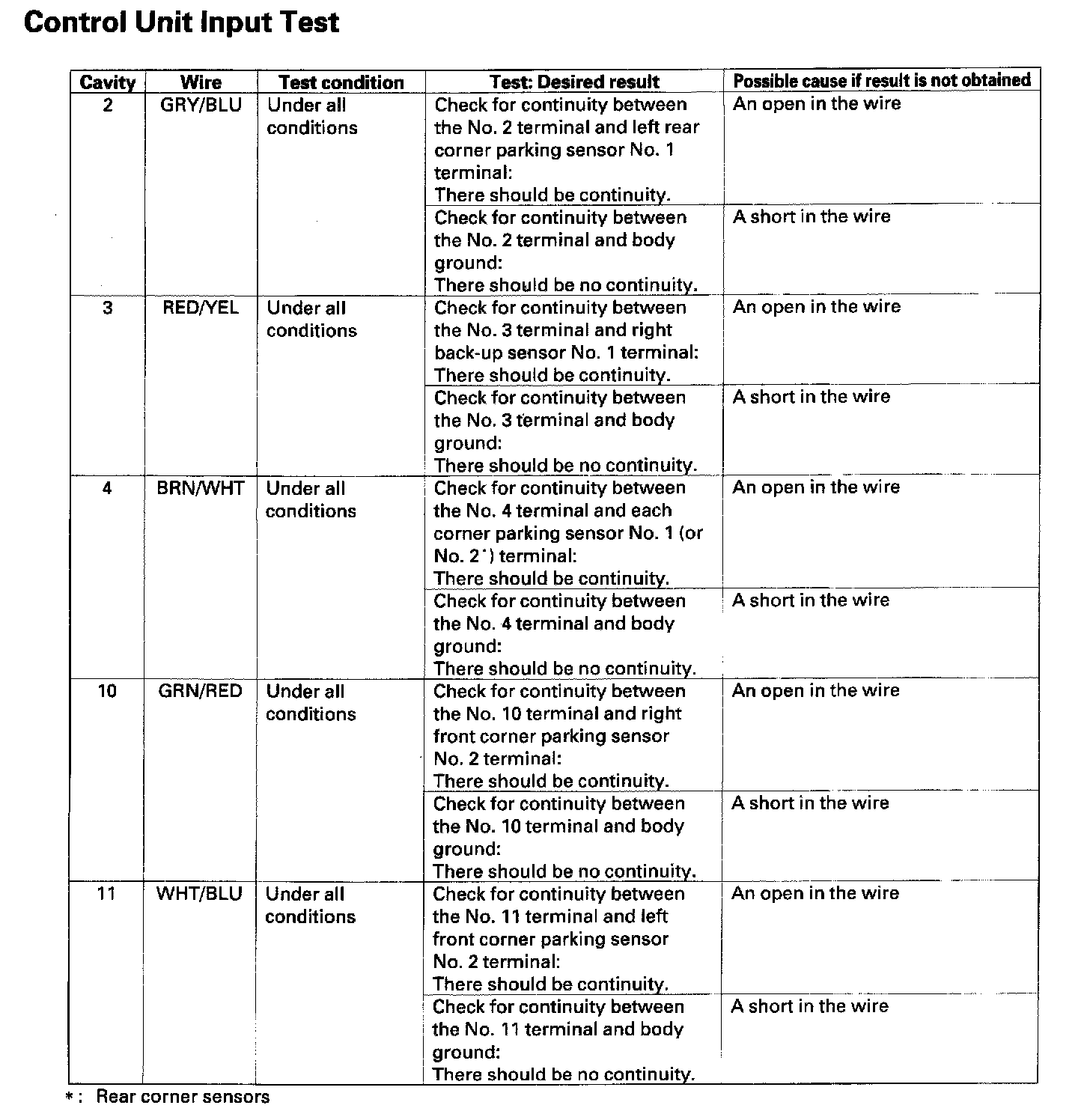

Control Unit Input Test

1. Remove the driver's dashboard lower cover.

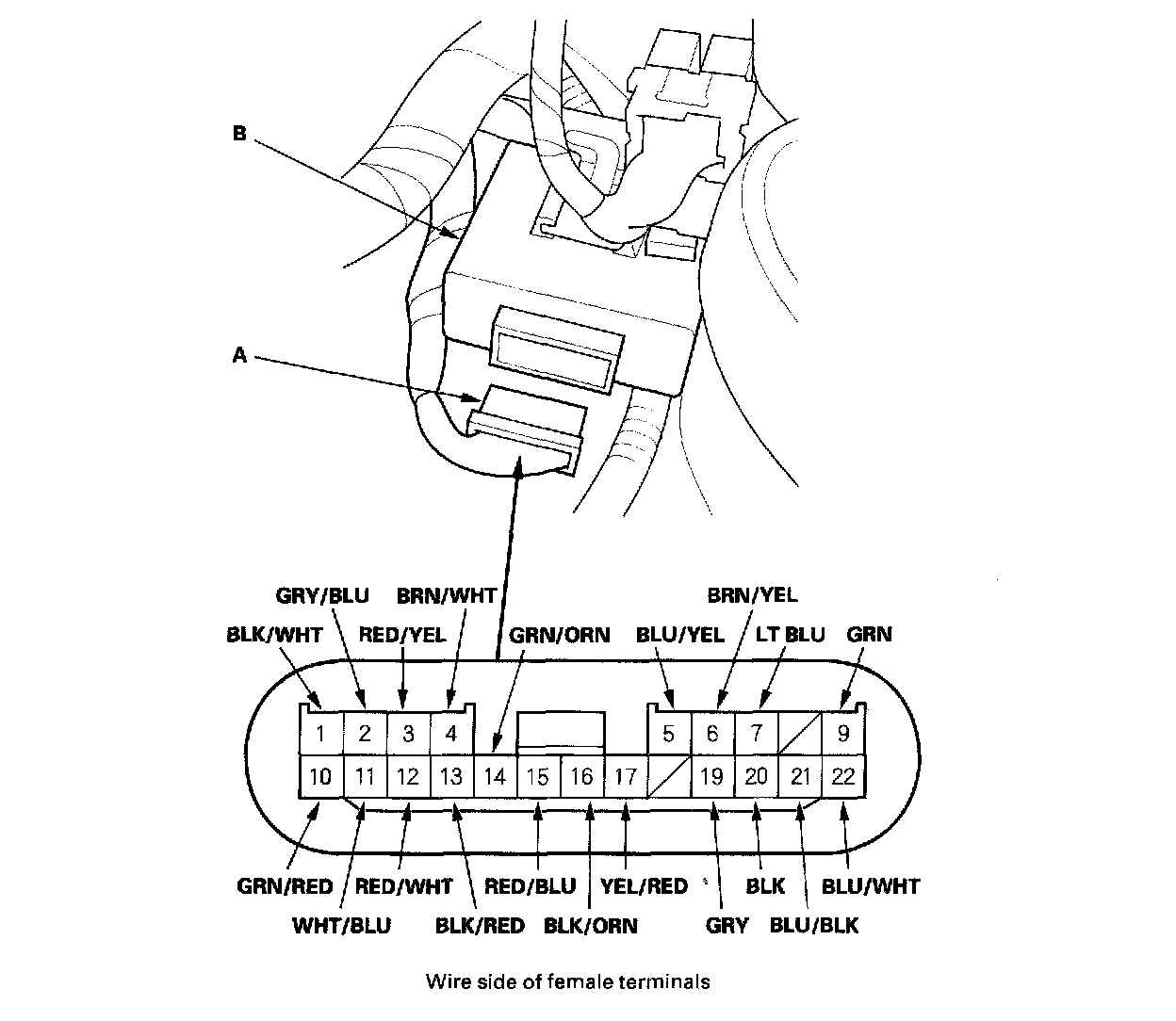

2. Disconnect the 22P connector (A) from the parking/back-up sensor control unit (B).
3. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

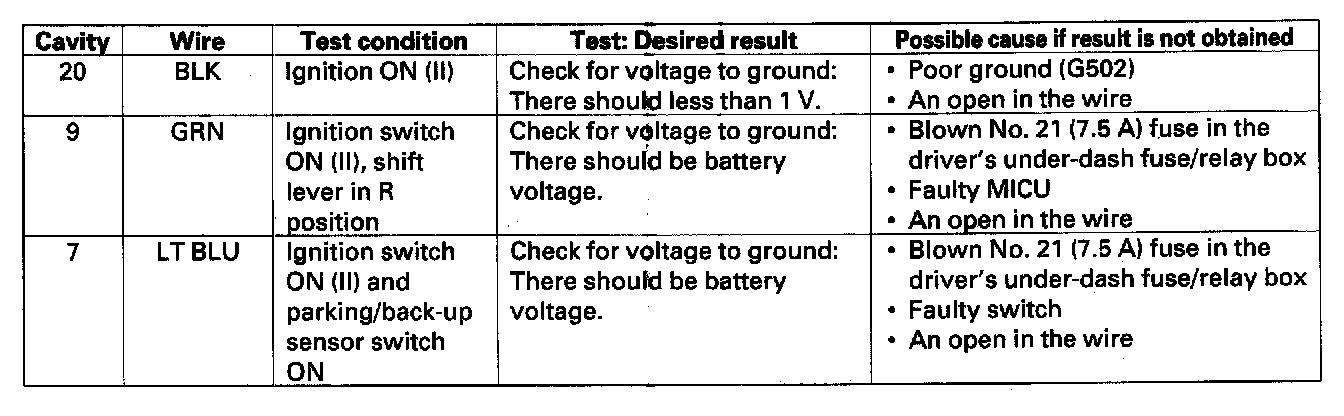

4. With the connector still disconnected, and the parking/back-up sensor switch turned ON, make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, control unit must be faulty replace it.

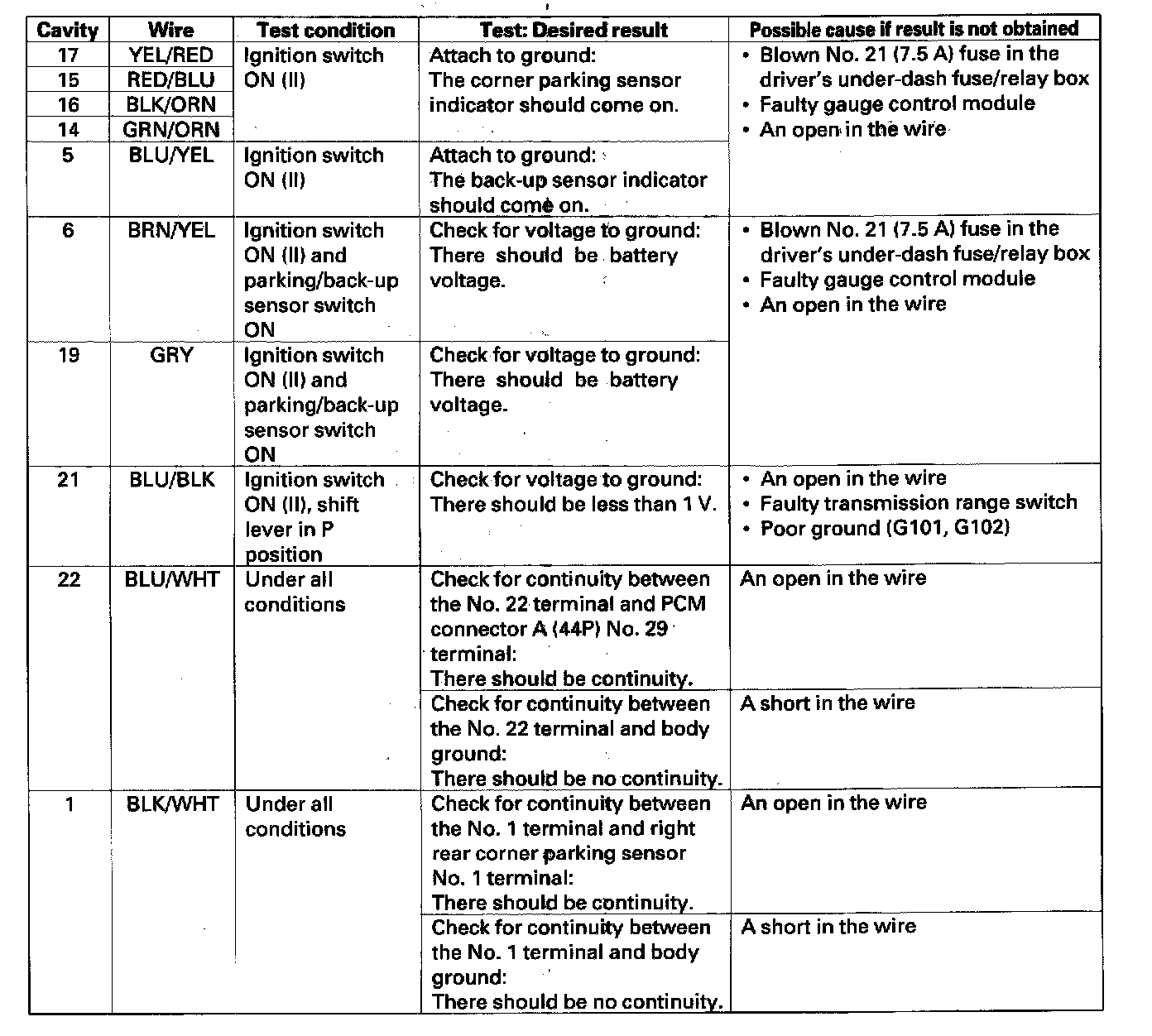

5. Reconnect the 22P connector to the parking/back-up sensor control unit, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, control unit must be faulty; replace it.
