Transmission Temperature Sensor/Switch: Service and Repair

ATF Temperature Sensor Replacement
1. Lift the vehicle up on a hoist, or apply the parking brake, block the rear wheels, and raise the front of the vehicle. Make sure it is securely supported.
2. Remove the front inner fender and splash shield.

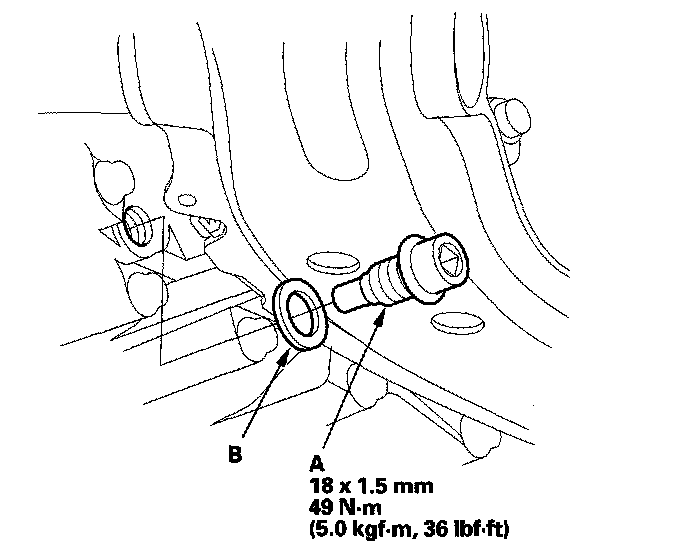

3. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).





4. Reinstall the drain plug with a new sealing washer (B).

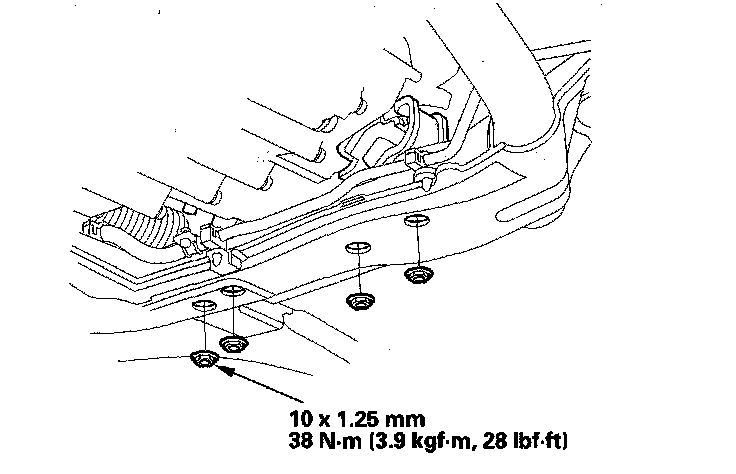

5. Place the transmission jack under the transmission, and remove the transmission lower mount nuts.





6. Lift up the transmission with the jack to create clearance between the transmission and front subframe.

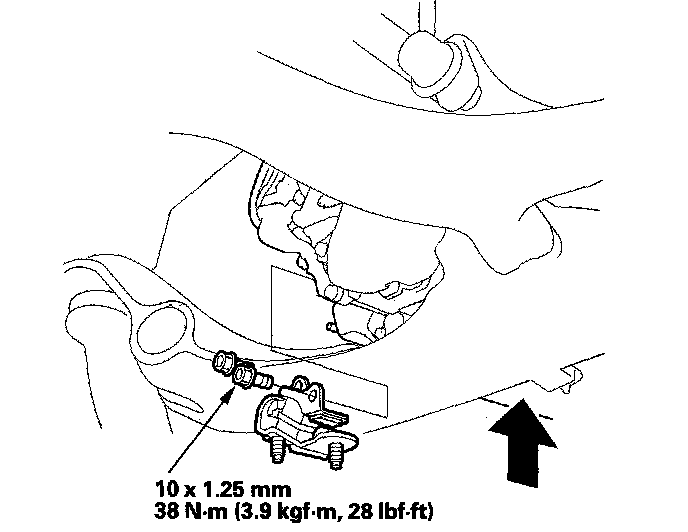

7. Remove the transmission lower front mount.

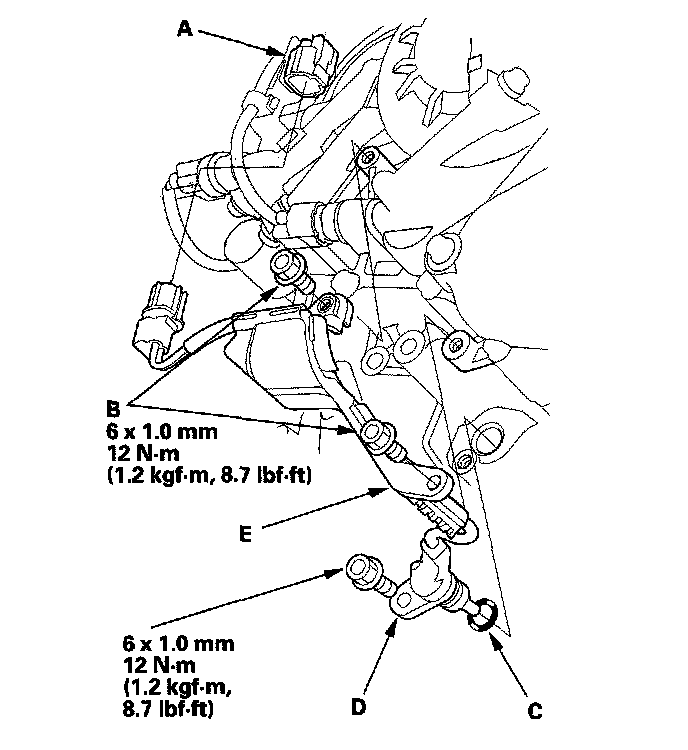

8. Disconnect the ATF temperature sensor connector (A).





9. Remove the ATF temperature sensor harness clamp bolt (B), and remove the sensor.
10. Install a new O-ring (C) on the new ATF temperature sensor (D), then install the sensor.
11. Secure the ATF temperature sensor harness clamp (E) with the bolts.
12. Check the connector for rust, dirt, or oil, then connect the connector securely.
13. Install the transmission lower front mount.
14. Lower the transmission, and install the transmission mount nuts.
15. Refill the transmission with the ATF.
16. Install the splash shield and front inner fender.
