Passenger's Window Switch Test/Replacement
Passenger's Window Switch Test/ReplacementFront Passenger's
1. Remove the front passenger's door panel.

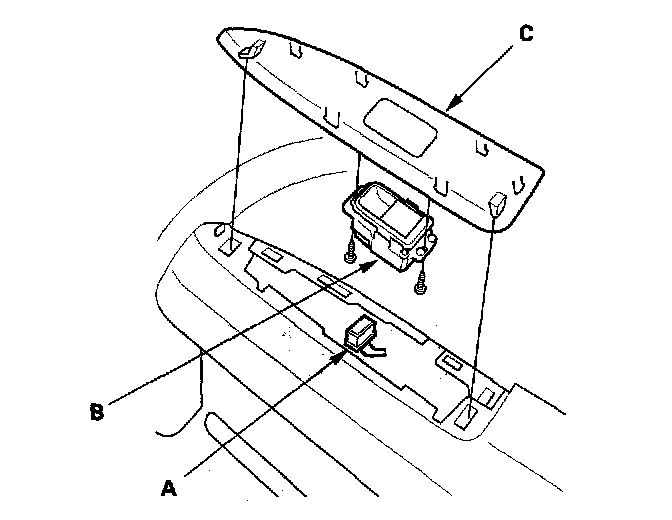

2. Remove the screw and disconnect the 10P connector (A) from the power window switch (B), then remove the switch assembly from the door panel.
3. Remove the four mounting screws, then remove the power window switch from the switch panel (C).
4. Swap the window switch with another known-good switch and test. If the original window switch is faulty; replace it.
5. Install in the reverse order of removal.
Rear
1. Remove the sliding door panel.

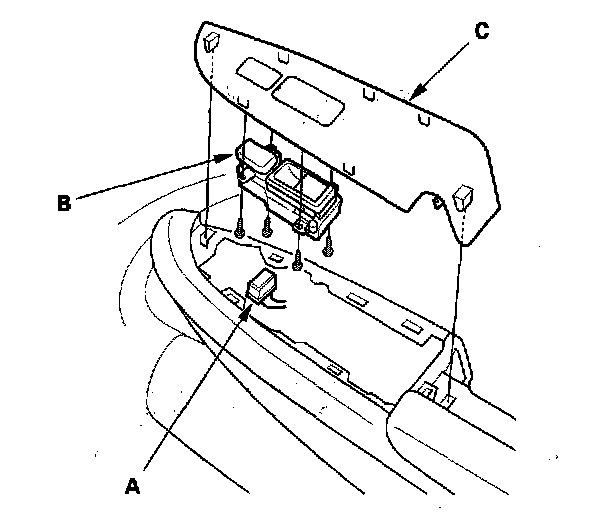

2. Remove the screw and disconnect the 6P connector (A) from the power window switch (B), then remove the switch assembly from the door panel.
3. Remove the two mounting screws, then remove the power window switch from the switch panel (C).
4. Swap the rear power window switch with another known-good switch and test. If the original window switch is faulty; replace it.
5. Install in the reverse order of removal.
