Rocker Arm Assembly Removal

Rocker Arm Assembly Removal
FRONT
1. Remove the cylinder head cover.

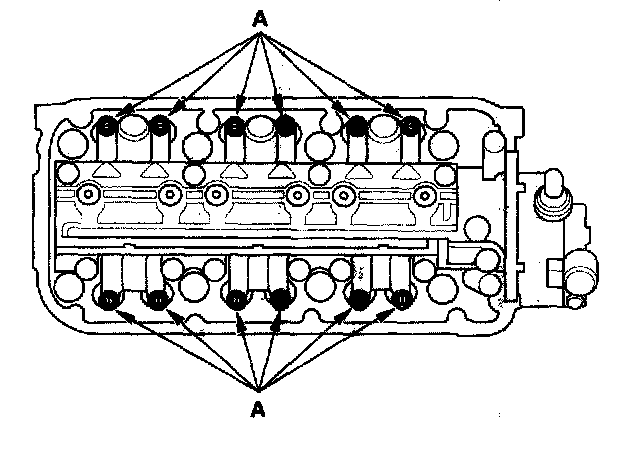

2. Loosen the locknuts and adjusting screws (A).

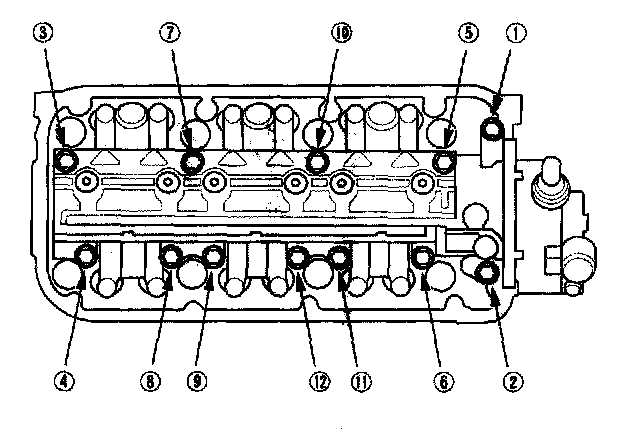

3. Remove the rocker shaft mounting bolts and the rocker arm assembly.
- 1 Unscrew the rocker shaft mounting bolts two turns at a time, to prevent damaging the valves or rocker arm assembly.
- 2 When removing the rocker arm assembly, do not remove the rocker shaft mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.

REAR
4. Remove the cylinder head cover.

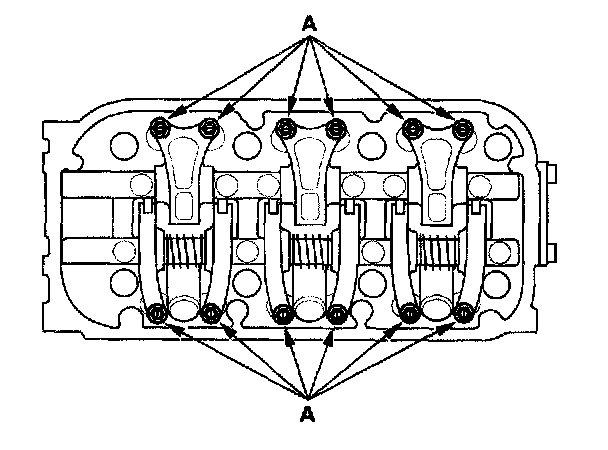

5. Loosen the locknuts and adjusting screws (A).

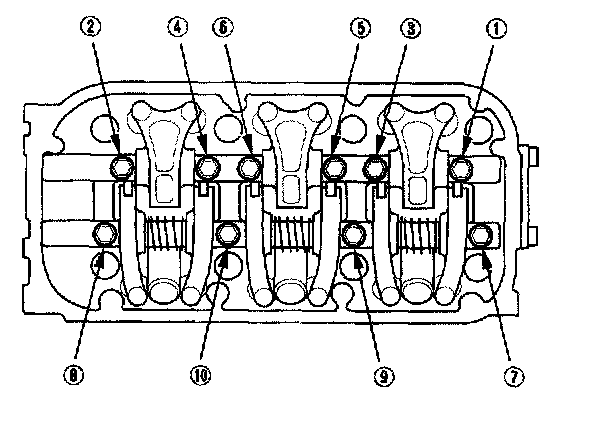

6. Remove the rocker shaft mounting bolts and the rocker arm assembly.
- 1 Unscrew the rocker shaft bridge mounting bolts and rocker shaft holder mounting bolts two turns at a time, to prevent damaging the valves or rocker arm assembly.
- 2 When removing the rocker arm assembly, do not remove the rocker shaft bridge mounting bolts and rocker shaft holder mounting bolts. The bolts will keep the rocker arms on the shafts.
