Front Console Cover Removal/Installation

Front Console Cover Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014*
* Available through the American Honda Tool and Equipment Program; call 888-424-6857

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the dashboard and related parts.

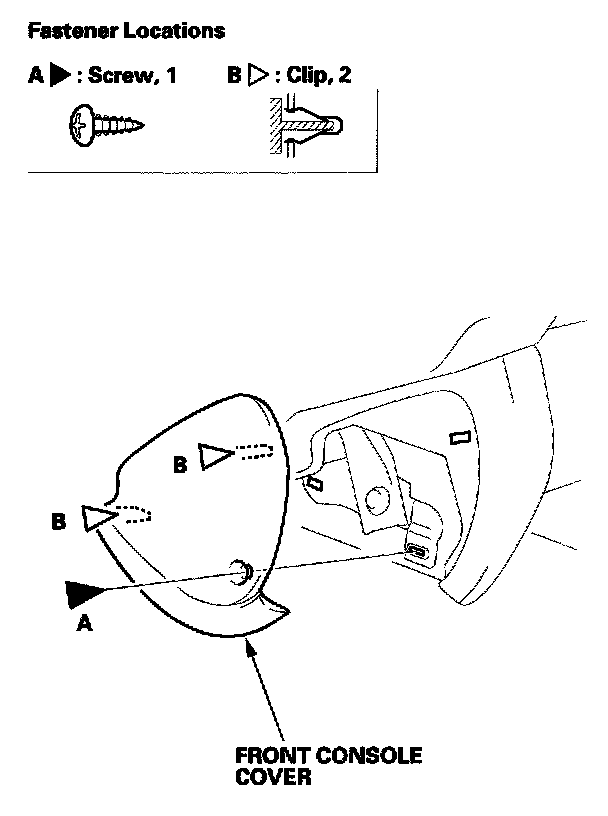

1. Remove the front console cover as shown.




2. Install the cover in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
