Wind Deflector Replacement
Wind Deflector ReplacementSpecial Tools Required
- KTC trim tool set SOJATP2014*
* Available through the American Honda Tool and Equipment Program; call 888-424-6857
'01-07 Models
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the rear console upper lid and related parts.

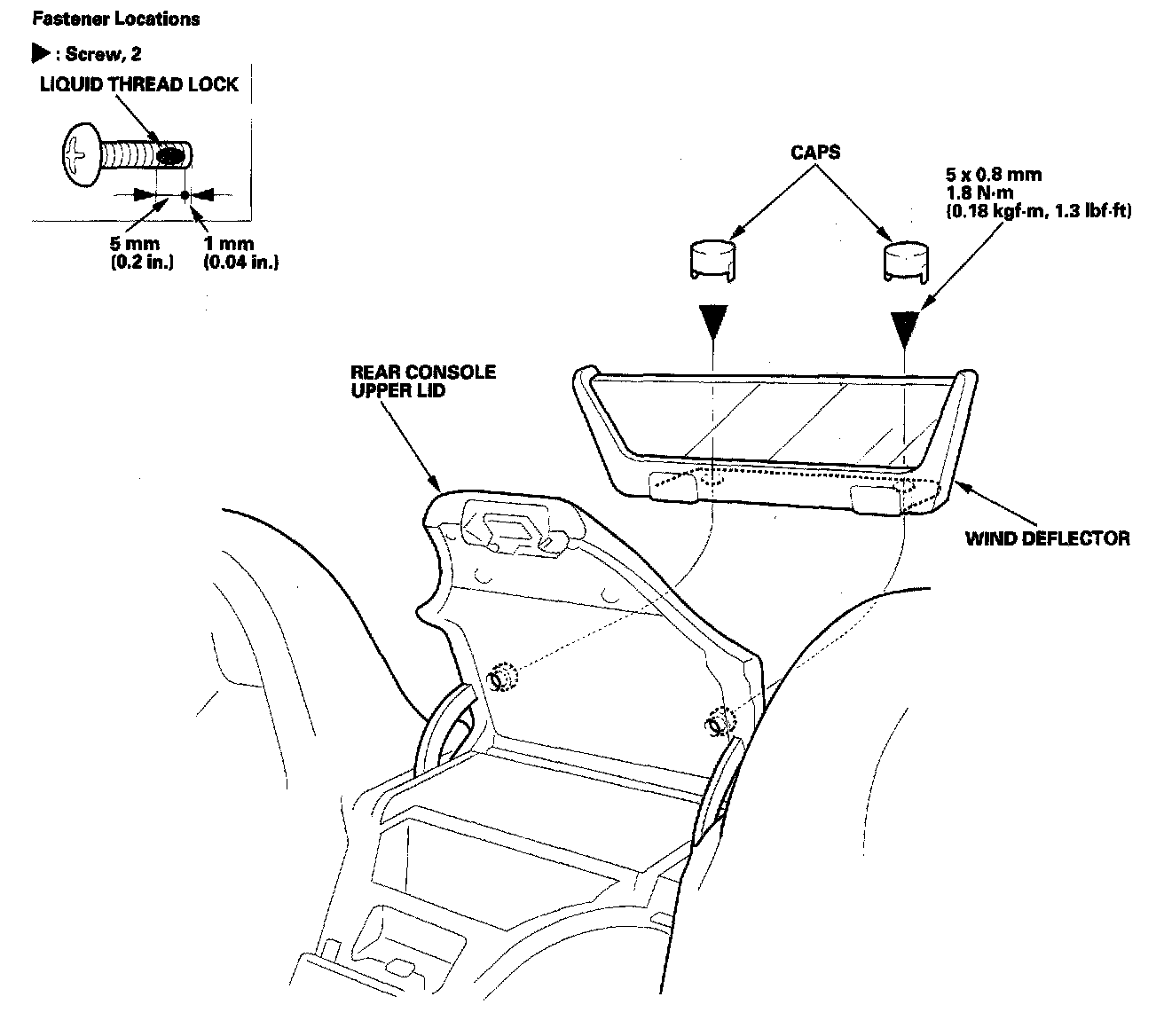

1. Remove the wind deflector as shown.
2. Install the wind deflector in the reverse order of removal.
- Apply liquid thread lock to the thread of the screws (A) before reinstallation.
- Make sure the caps are installed securely onto the screws.
