Key Reminder Switch: Testing and Inspection

Ignition Key Switch Test

1. Remove the steering column upper and lower covers.

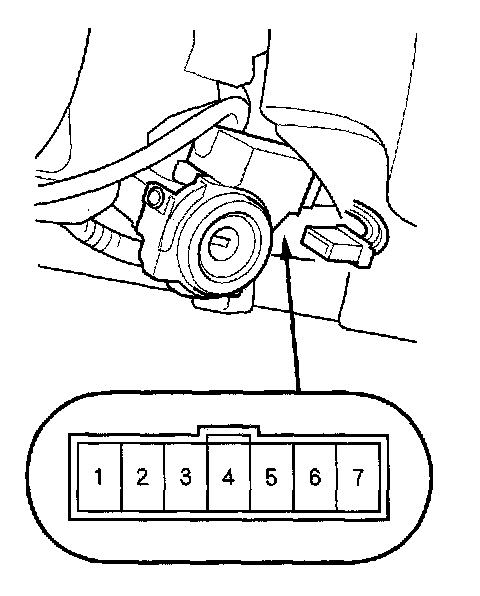

2. Disconnect the 7P connector.
3. Check for continuity between the No. 1 and No. 3 terminals.
- There should be continuity with the key in the ignition switch.
- There should be no continuity with the key removed from the ignition switch.

4. If the continuity is not as specified, replace the ignition key switch.
