Disconnecting System Connectors

Disconnecting System Connectors ('06 Model)

Turn the ignition switch OFF, disconnect the negative cable from the battery, and wait at least 3 minutes before beginning the following procedures.

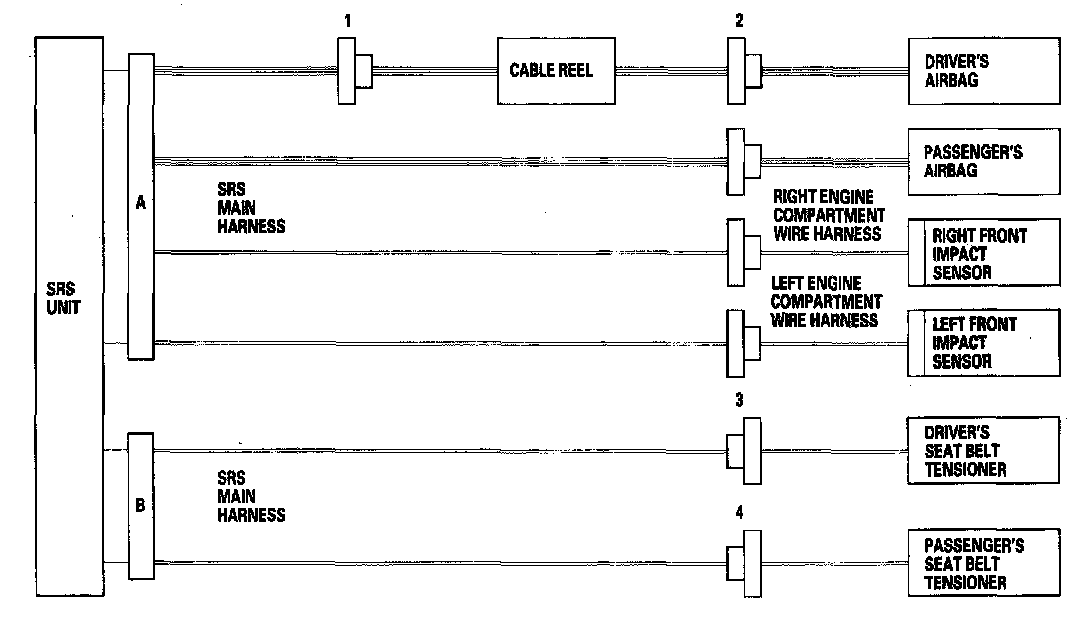

- Before disconnecting the cable reel 4P connector (1), disconnect the driver's airbag 4P connector (2).
- Before disconnecting SRS unit connector B (28P) from the SRS unit, disconnect both seat belt tensioner 2P connectors (3, 4).

('06 Model)

1. Disconnect the battery negative cable, and wait at least 3 minutes.

Driver's Airbag

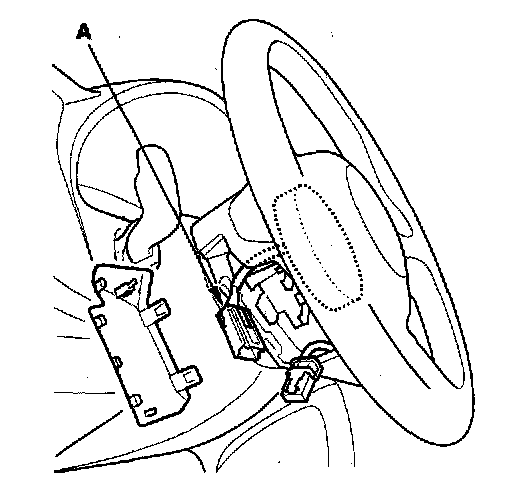

2. Remove the access panel from the steering wheel, then disconnect the driver's airbag 4P connector (A) from the cable reel.

Passenger's Airbag

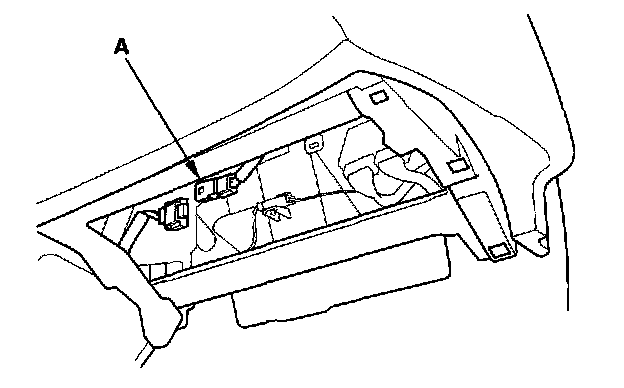

3. Remove the passenger's dashboard lower cover, then disconnect the passenger's airbag 4P connector (A) from the SRS main harness.

Seat Belt Tensioner

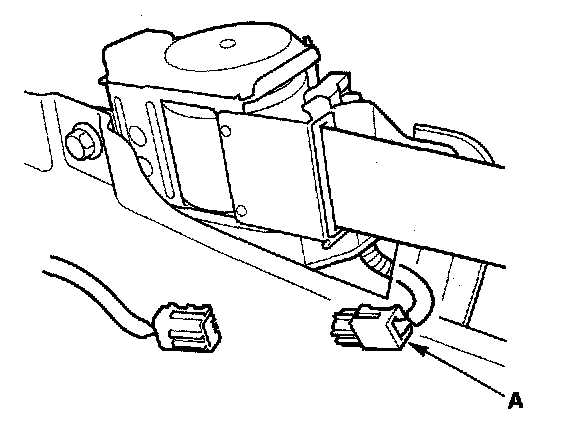

4. Remove the roll bar upper trim, then disconnect the seat belt tensioner 2P connector (A) from the SRS main harness.

SRS Unit

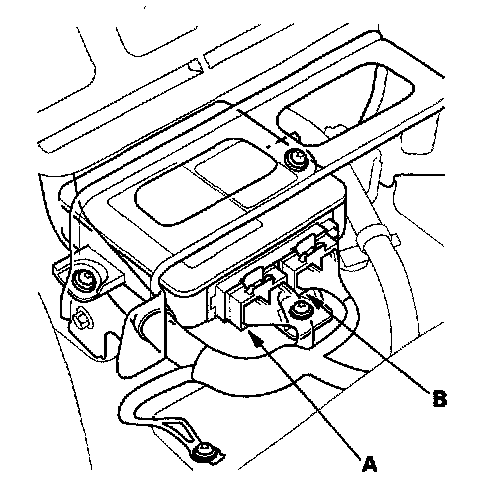

5. Disconnect SRS unit connector A (28P) or SRS unit connector B (28P) from the SRS unit.
