Rack Guide Removal/Installation

Rack Guide Removal/installation

NOTE: During removal/installation, do not allow dust, dirt, or other foreign materials to enter the gearbox.

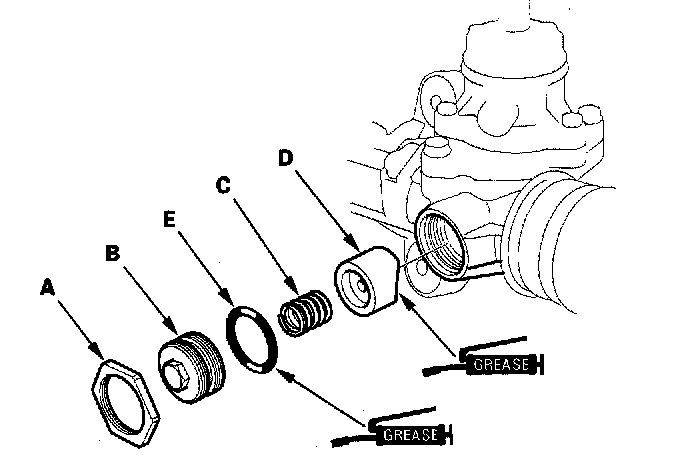

1. Loosen the locknut (A), then remove the rack guide screw (B), spring (C), and rack guide (D).
2. Apply multipurpose grease to the sliding surface of the rack guide, and install it onto the gearbox housing.
3. Coat the new O-ring (E) with multipurpose grease, and carefully fit it on the rack guide screw groove.
4. Install the spring, rack guide screw, and locknut.
5. Adjust the rack guide screw. After adjusting, check that the rack moves smoothly by sliding the rack right and left.
