Windshield Washer Reservoir: Service and Repair

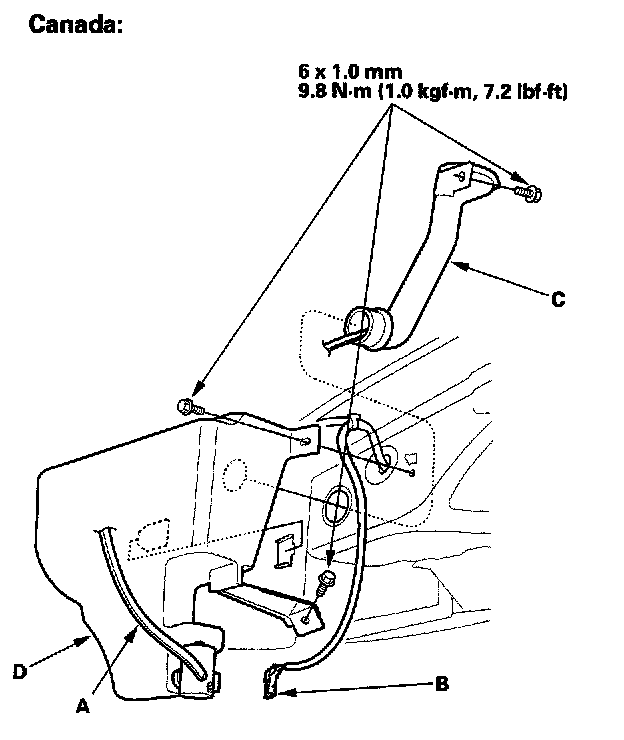

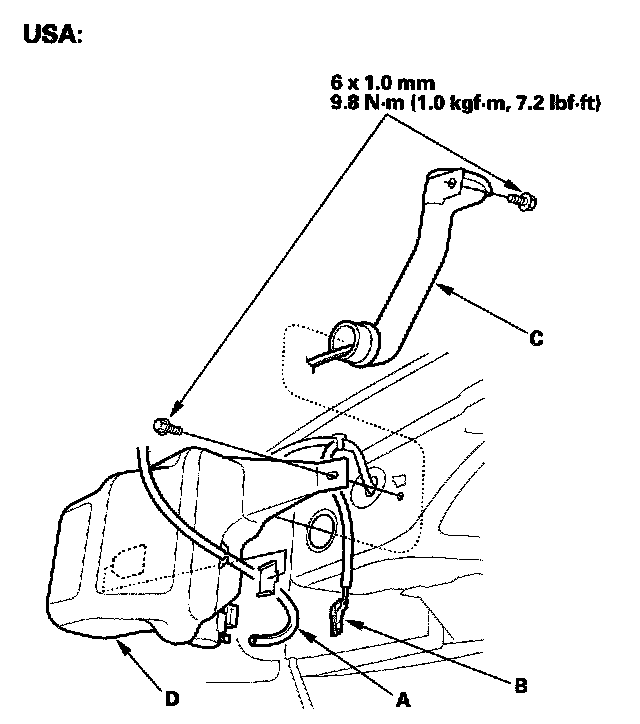

Washer Reservoir Replacement 1.
Pull away the right inner fender.
2.
Disconnect the washer tube (A) and washer motor 2P connector (B).
3.
Remove the bolts, then separate and remove the filler neck (C) from the washer reservoir (D).
4.
Remove the washer reservoir.
5.
Install in the reverse order of removal. Check the washer motor operation.
