Battery Current Sensor: Service and Repair

Motor Current Sensor Removal/Installation

NOTE: Put on gloves to protect your hands from electrical shock.

IMA components are located in this area. The IMA is a high-voltage system. You must be familiar with the IMA system before working on or around it. Make sure you have read the IMA service precaution before doing repairs or service.

1. Remove the IPU lid.

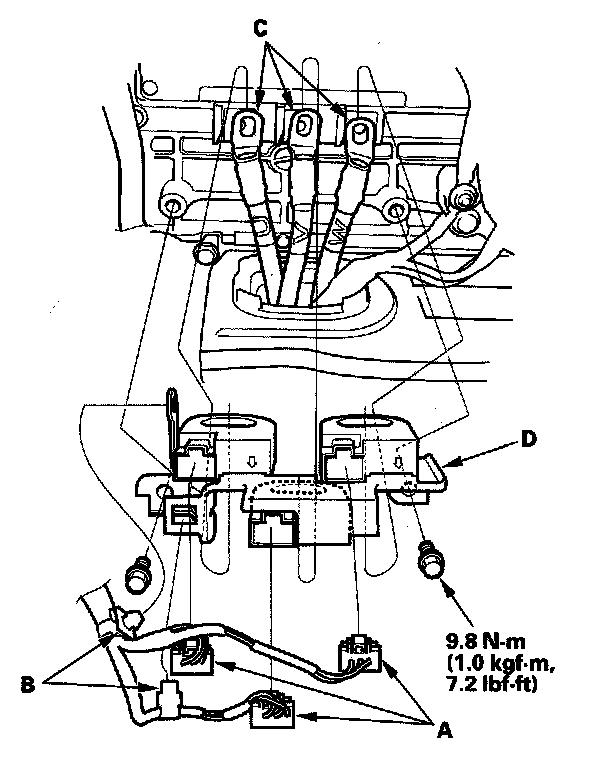

2. Disconnect the motor current sensor connectors (A), and clips (B).

NOTE: Check the position of the U phase, V phase and W phase cables before disconnecting the motor power cables.

3. Remove the motor power cables (C) and wrap them with insulating tape.
4. Remove the motor current sensor stay (D).




5. Remove the motor current sensors (A).
6. Install the parts in the reverse order of removal.
