Alignment
Wheel Alignment Caster angle
3° 15' ± 45'
Camber angle:
Front
0° 00' ± 45' (Maximum difference between the right and left side: 0° 45')
Rear
-1° 00' ± 30'
Front toe-in
0 ± 2 mm (0 ± 0.08 in.)
Rear toe-in
2 ± 2 mm (0.08 ± 0.08 in.)

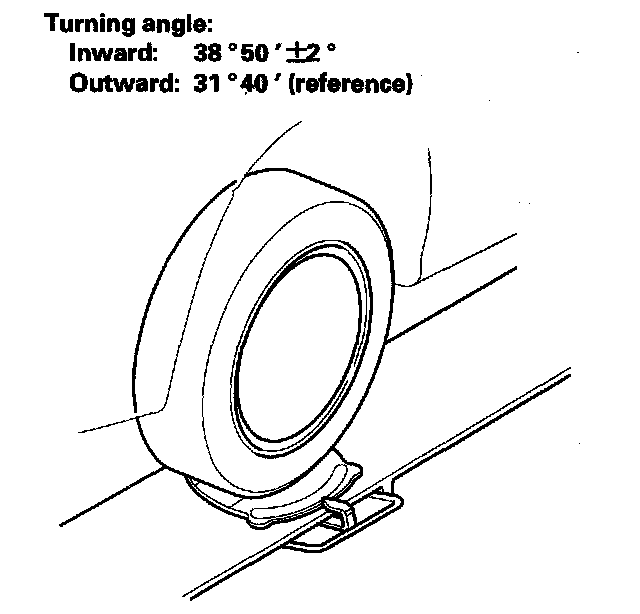

Turning Angle
