View 201-225: 216

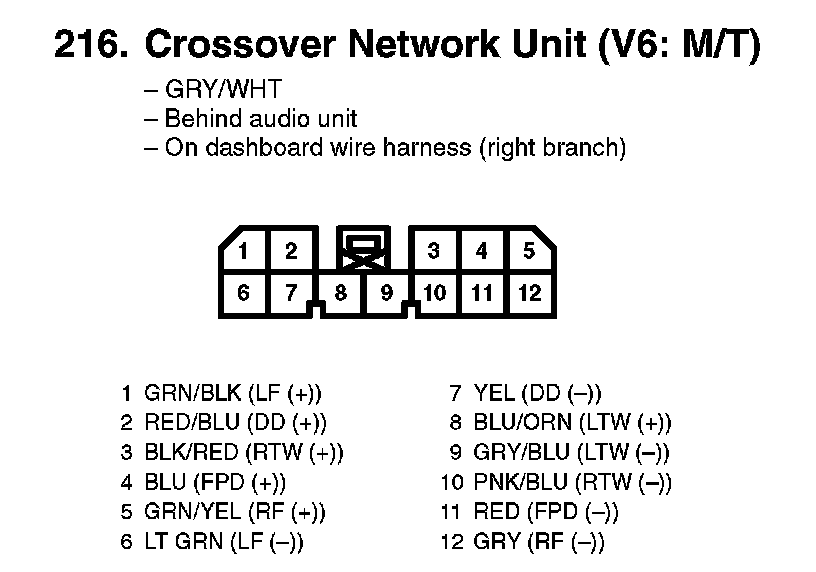

216. Crossover Network Unit (V6: M/T):

234. Audio-HVAC Display Module (VP, DX-G, LX, SE; L4: EX):

255. Audio Unit:

276. XM Receiver (EX-L):

294. Frequency Modulator Unit (Honda Accessory):

295. XM Receiver (Honda Accessory):

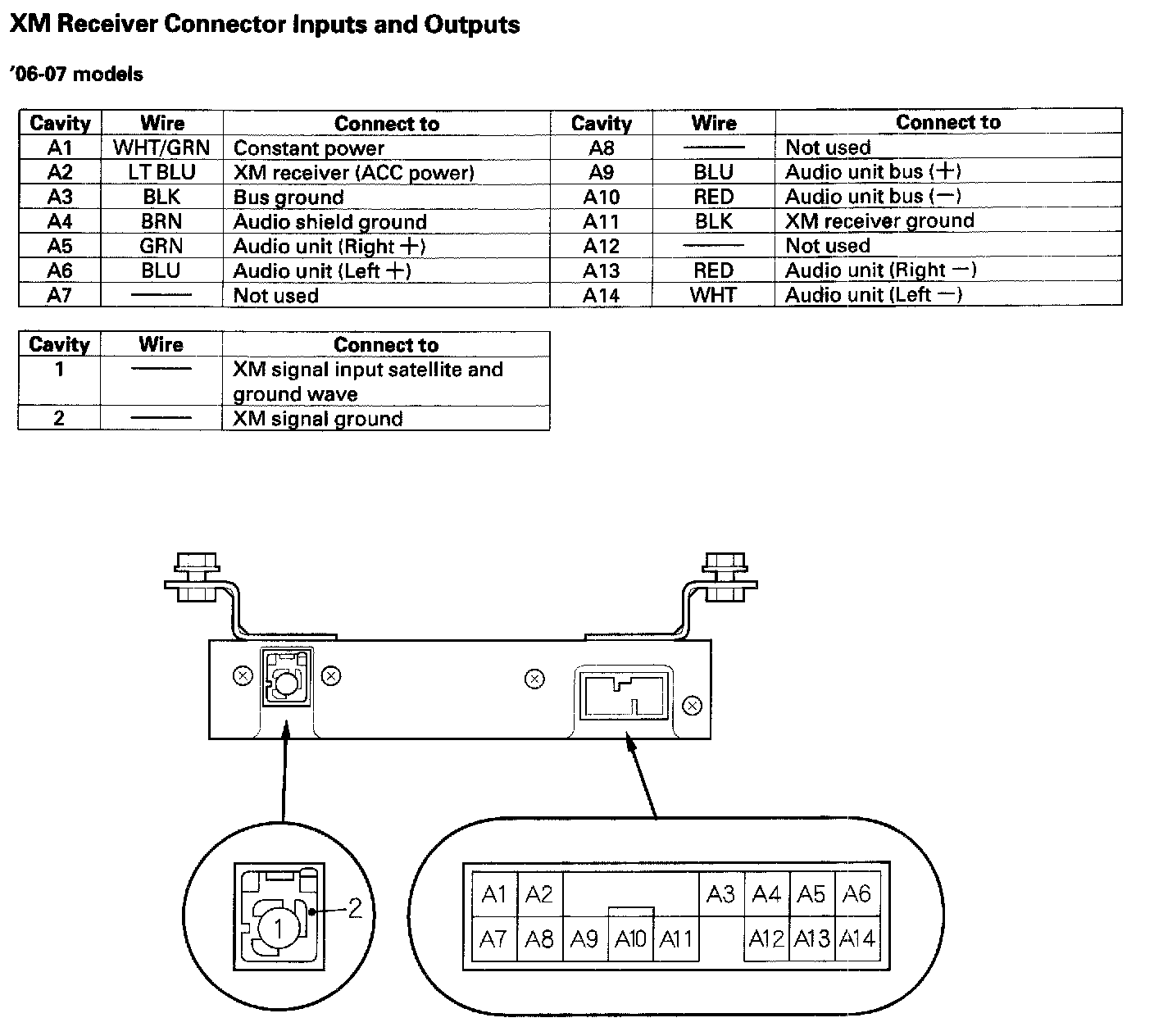

XM Receiver Connector Inputs and Outputs:

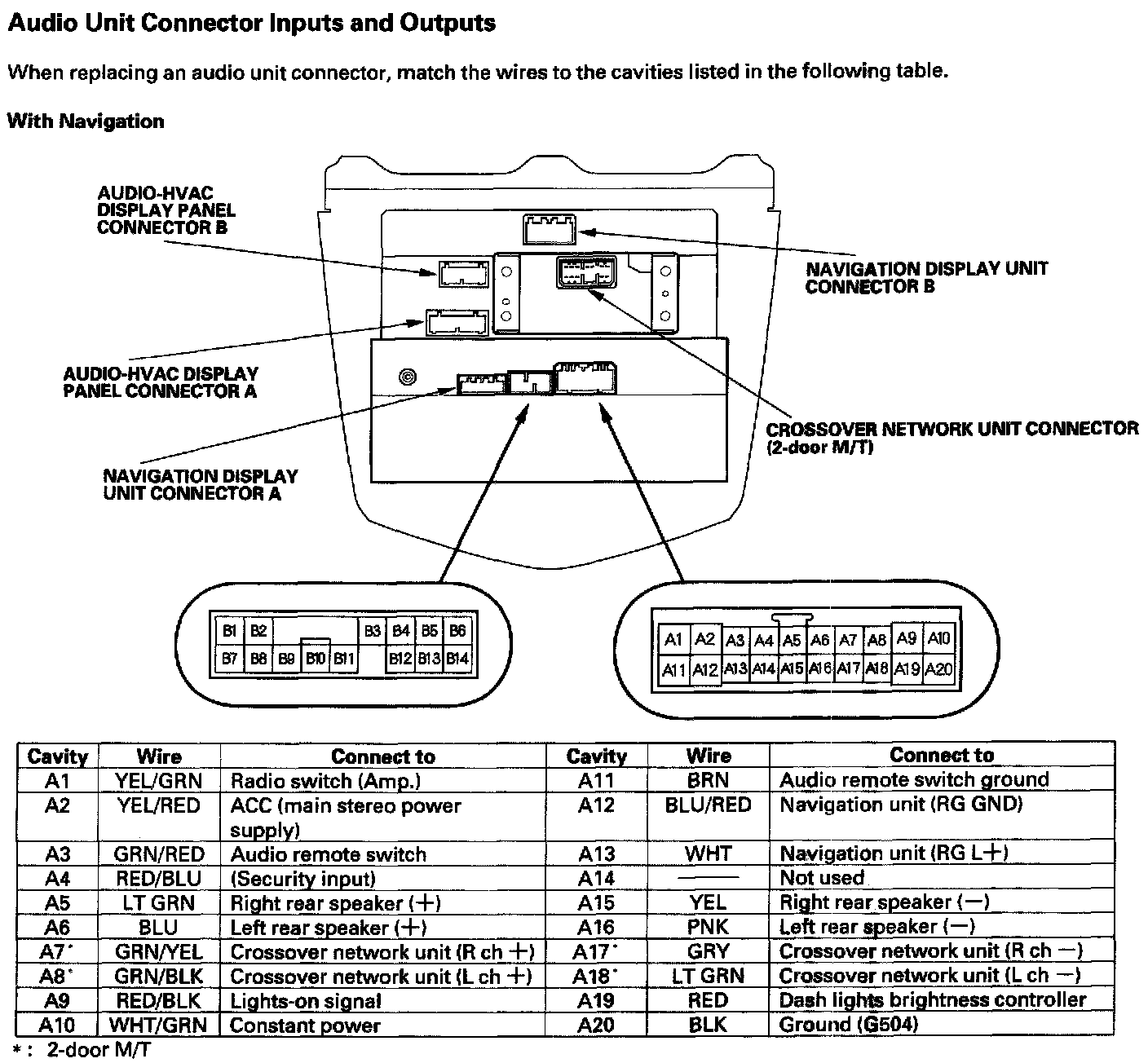

Audio Unit Connector Inputs And Outputs Part 1:

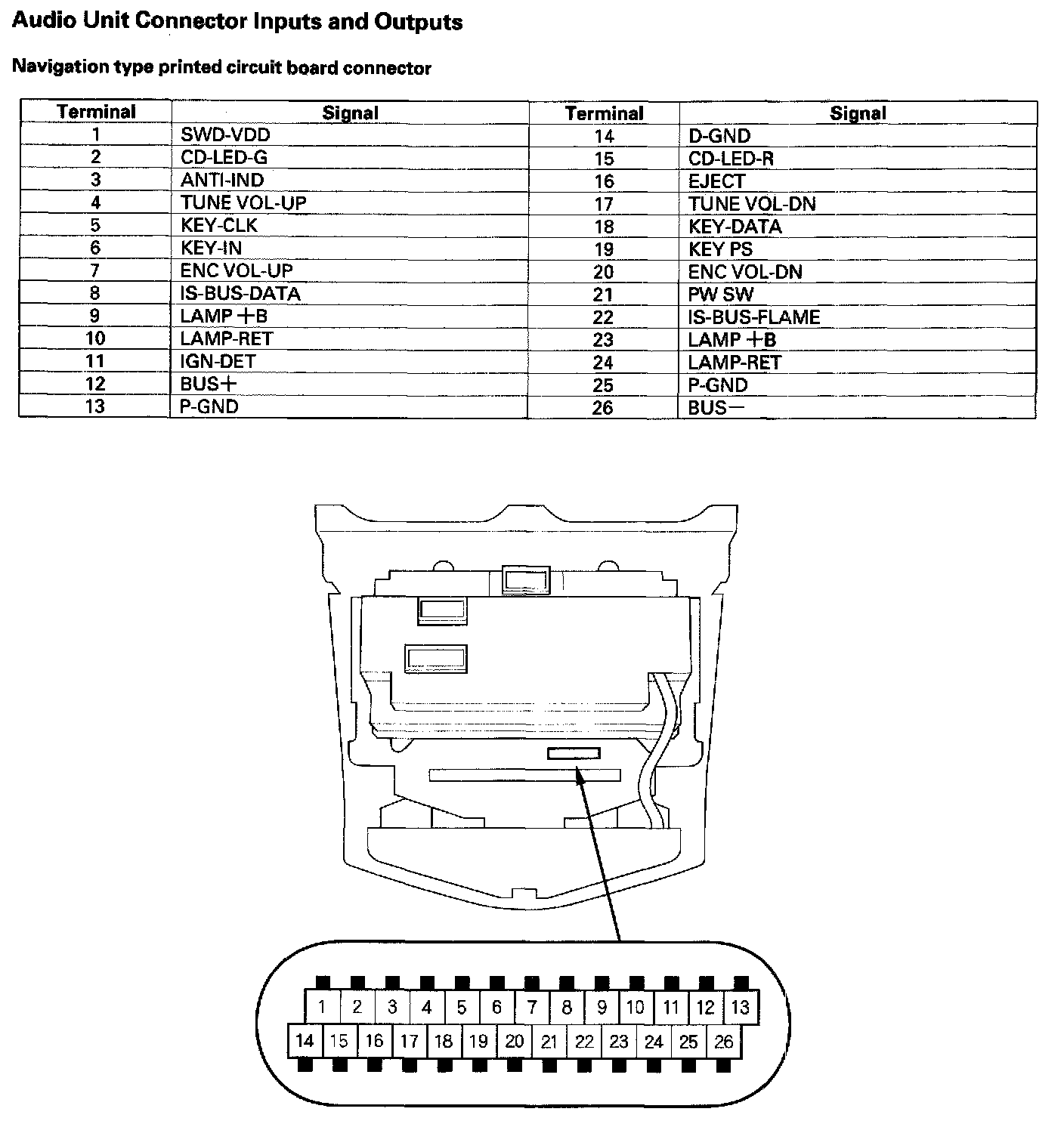

Audio Unit Connector Inputs And Outputs Part 2:

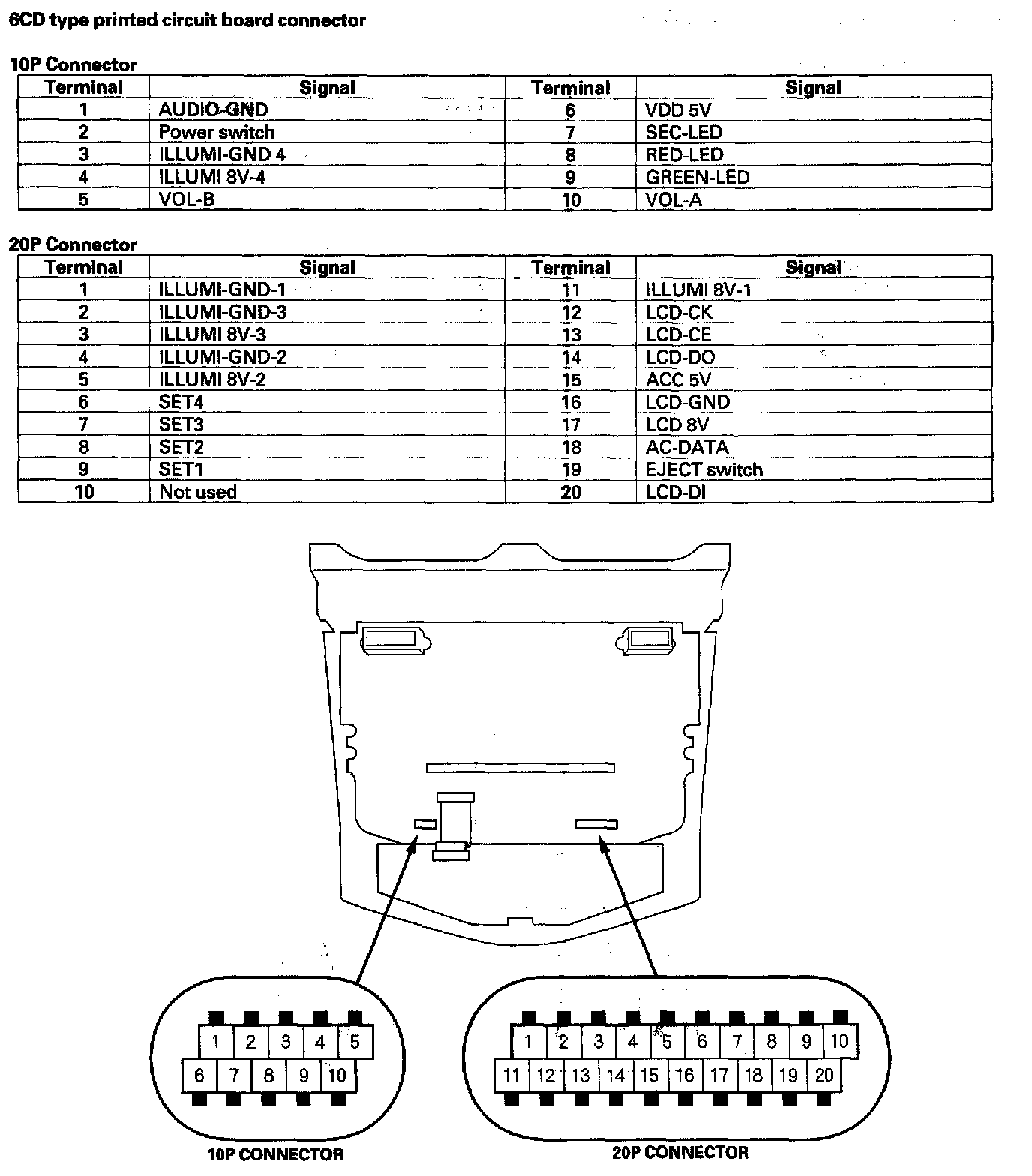

Audio Unit Connector Inputs And Outputs Part 3:

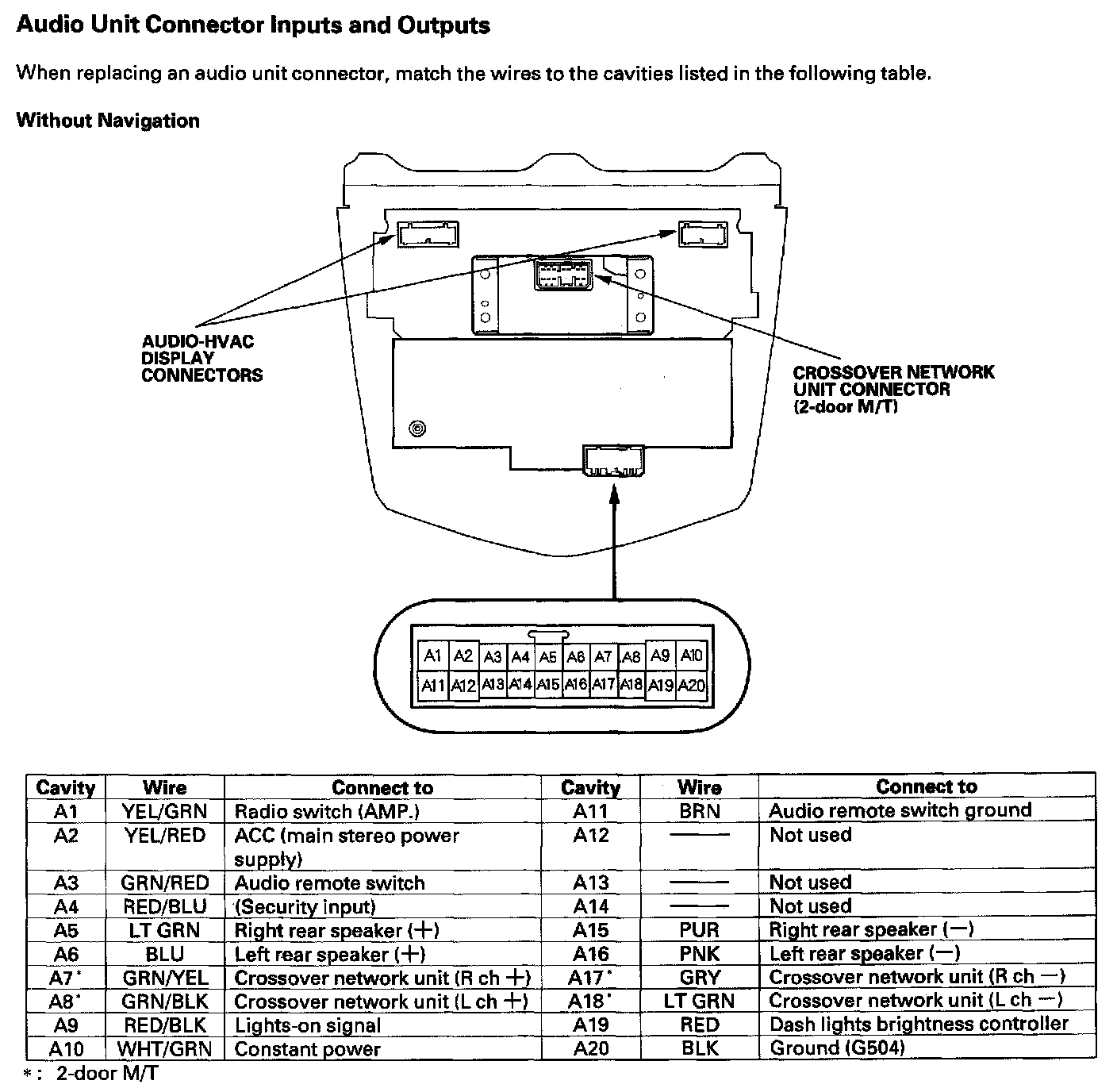

Audio Unit Connector Inputs And Outputs Part 4:

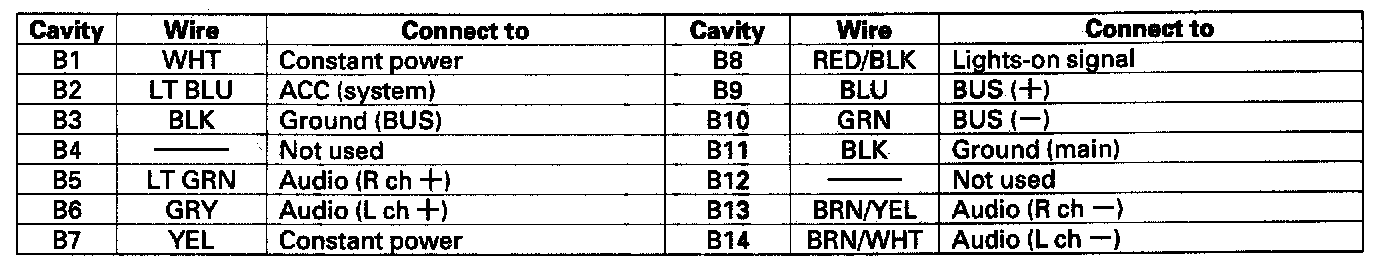

Audio Unit Connector Inputs And Outputs Part 5:

Audio Unit Connector Inputs And Outputs Part 6:

Audio-HVAC Subdisplay Unit Connector Inputs And Outputs:

Crossover Network Unit Connector Inputs And Outputs:
