Front Door Window Glass Weatherstrip: Service and Repair

Front Door Glass Outer Weatherstrip Replacement

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the door.

1. Remove these items:
- Power mirror.
- Door panel.
- Plastic cover, as needed.

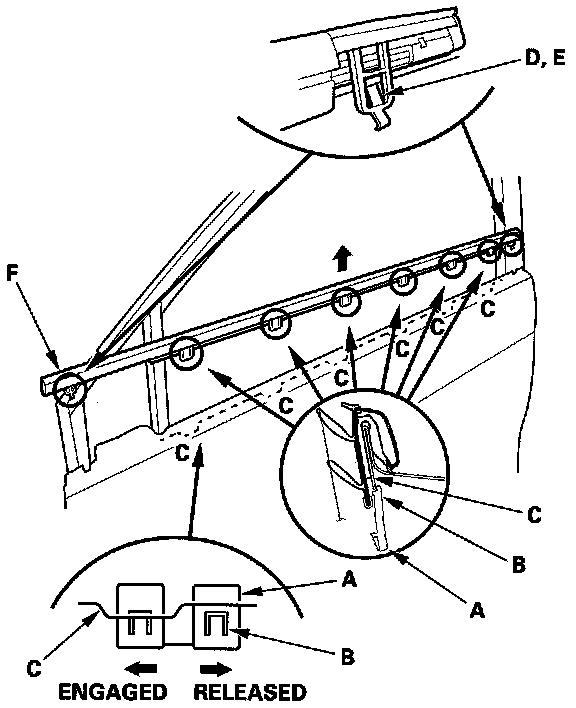

2. Slide the clips (A) to release the hooks (B) from the flanges (C) of the door panel.
3. Release the front hook (D) and rear hook (E) from inside of the door, then remove the weatherstrip (F).
4. Install a new weatherstrip in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- The clips should be engaged with flanges (installation points) of the door panel.
- Push the clips, front hook, and rear hook into place securely.
