Resonator: Service and Repair

Resonator Removal/Installation

1. Make sure you have the anti-theft code for the audio system.
2. Remove the battery.

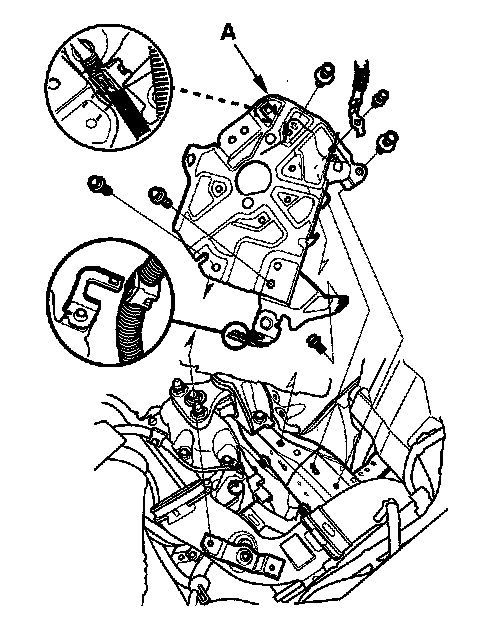

3. Remove the battery base (A).

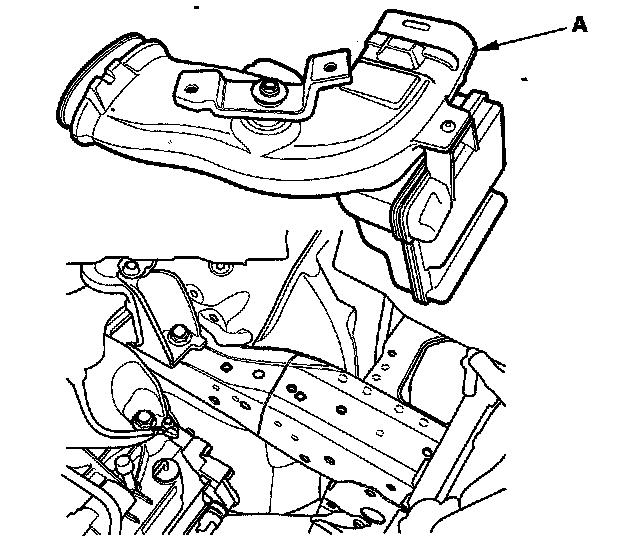

4. Remove the air intake duct (A).
5. Remove the front bumper.

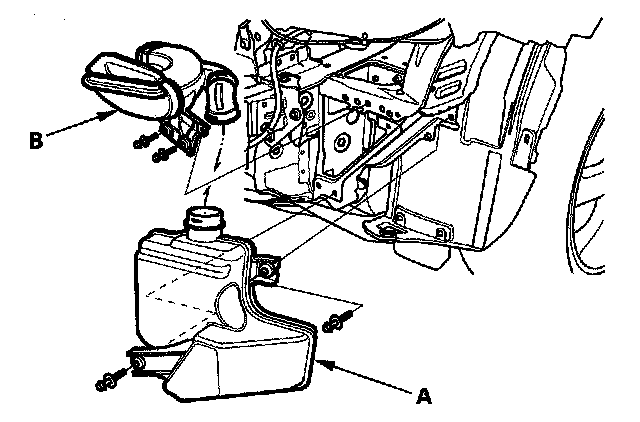

6. Remove the resonator (A) and duct (B).
7. Install the parts in the reverse order of removal.
8. Reinstall the battery, and do these items:
- Enter the anti-theft code for the audio system.
- Reset the clock.
