View 51-75: 66

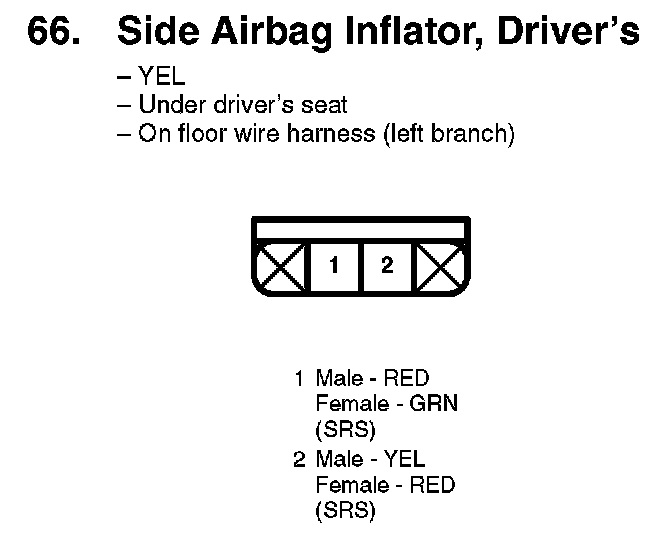

66. Side Airbag Inflator, Driver's:



67. Side Airbag Inflator, Front Passenger's:



68. Side Curtain Airbag Inflator, Left:



69. Side Curtain Airbag Inflator, Right:



129. Airbag First And Second Inflators, Driver's:



130. Airbag First And Second Inflators, Front Passenger's:
