Engine Oil: Service and Repair

Engine Oil Replacement
1. Warm up the engine.

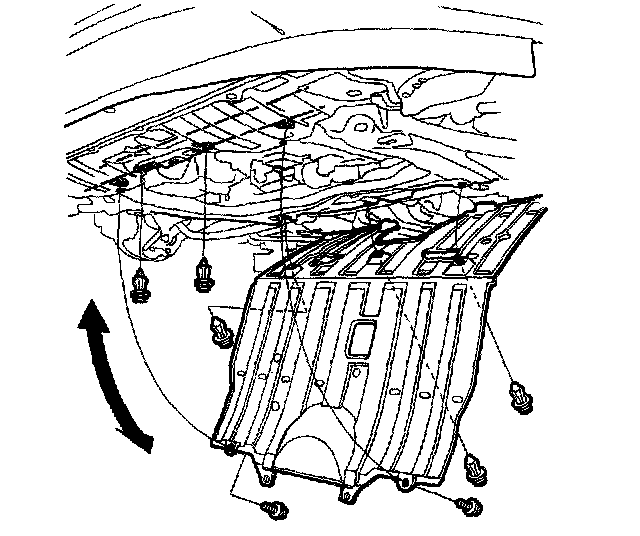

2. Remove the five clips and the two bolts securing the engine under cover, then open the engine undercover.

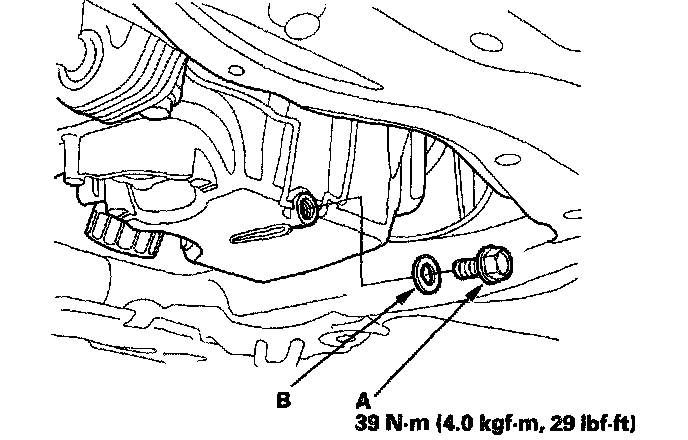

3. Remove the drain bolt (A), and drain the engine oil,





4. Reinstall the drain bolt with a new washer (B).

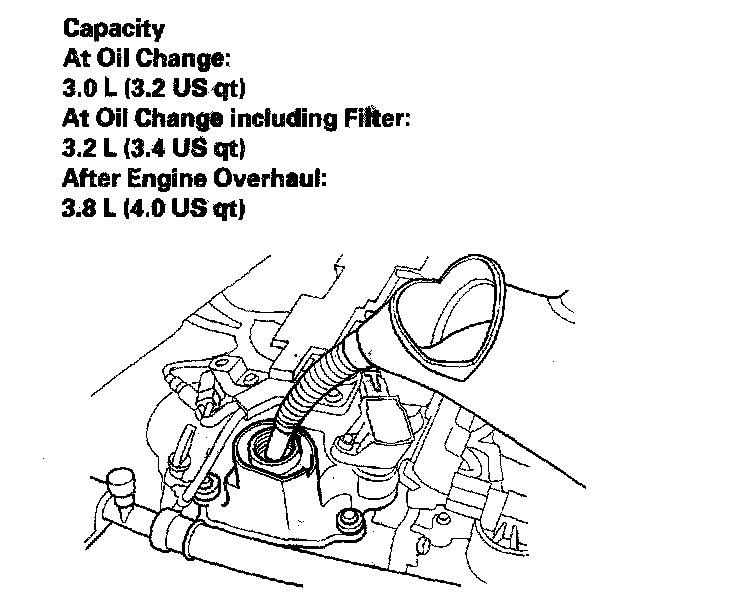

5. Refill with the recommended oil.

Capacity At Oil Change: 3.0 L (3.2 US qt)
At Oil Change including Filter: 3.2 L (3.4 US)
After Engine Overhaul: 3.8 L (4.0 US qt)





6. Install the engine under cover.
7. Check for oil leakage during and after running the engine for more than 3 minutes.
