Fuel Tank Temperature Sensor (CNG): Service and Repair

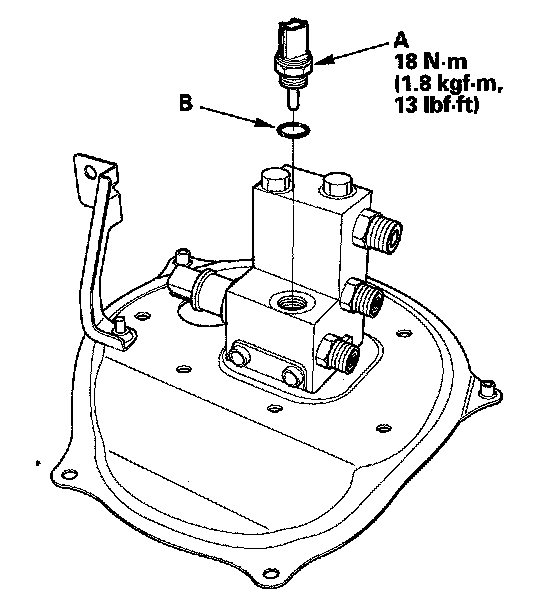

FTT Sensor Replacement 1.
Remove the fuel joint block.
2.
Remove the FTT sensor (A).
3.
Apply silicone oil or polyalkyleneglycol (PAG) oil to a new O-ring (B) and carefully install it into its proper position.
4.
Install the parts in the reverse order of removal.
5.
Do the leak inspection procedure.
