Hatch

Hatch

Adjustment

1. Close the tailgate securely.
2. Remove the support strut from each side.
3. Loosen each bolt slightly.

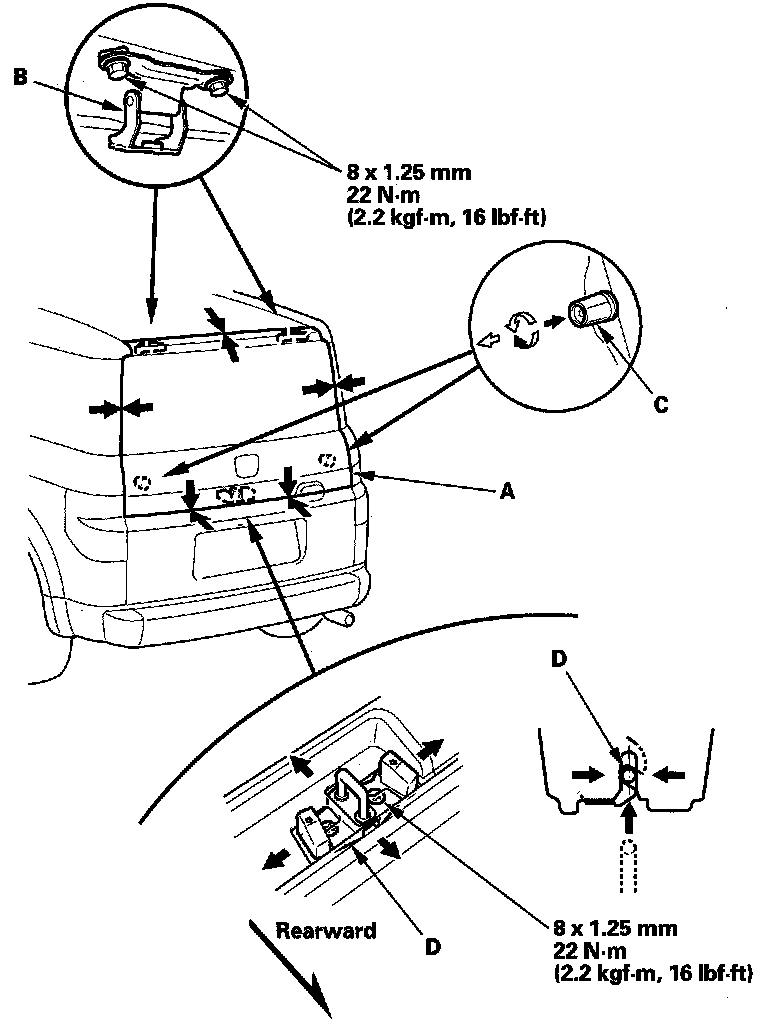

4. Adjust the hatch (A) alignment in the following sequence:
- Pull down the rear portion of the headliner. Take care not to bend the headliner excessively. Adjust the hatch hinges (B) right and left, as well as forward and rearward, using the elongated holes.
- Turn the hatch edge cushions (C), in or out as necessary, to make the hatch fit flush with the body at the side edges.
- Adjust the fit between the hatch and hatch opening by moving the striker (D).

5. Tighten each bolt securely.
6. Check that the hatch opens properly and locks securely.
7. Reinstall the support struts securely.
8. Apply body paint to the hinge mounting nuts and around the hinges.




9. Apply multipurpose grease to the pivot portion of the hatch hinges (A) as indicated by the arrows.
