Air Register: Service and Repair

Driver's Vent Removal/Installation

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program.

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- The passenger's vent is similar.

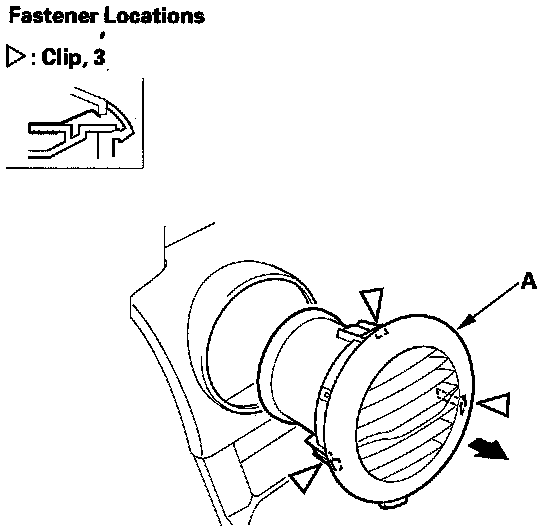

1. Apply protective tape around the related parts to prevent damage. Carefully insert the appropriate tool from the KTC trim tool set next to the clips, and detach the clips by prying on the driver's vent (A). Take care not to scratch the dashboard and related parts.
2. Pull out on the driver's vent, then remove it.
3. Install the driver's vent by pushing the clips into place securely.
