Lower Front Bumper Grille Replacement

Lower Front Bumper Grille Replacement

NOTE:
- Put on gloves to protect your hands.
- Take care not to scratch the front bumper.

1. Remove the front bumper.
2. If equipped with the front fog lights, remove them from both sides of the front bumper.

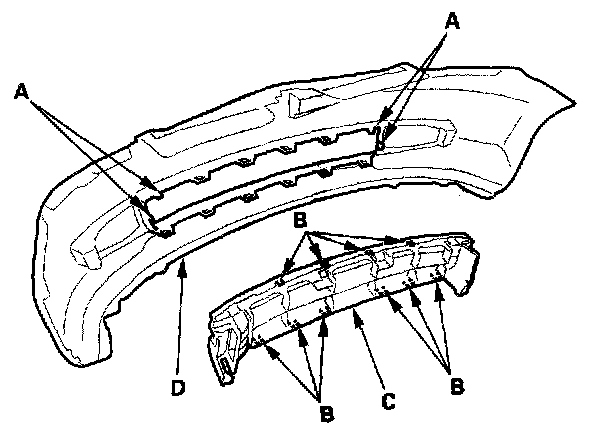

3. Detach the hooks (A, B), then remove the lower front bumper grille (C) from the front bumper (D).

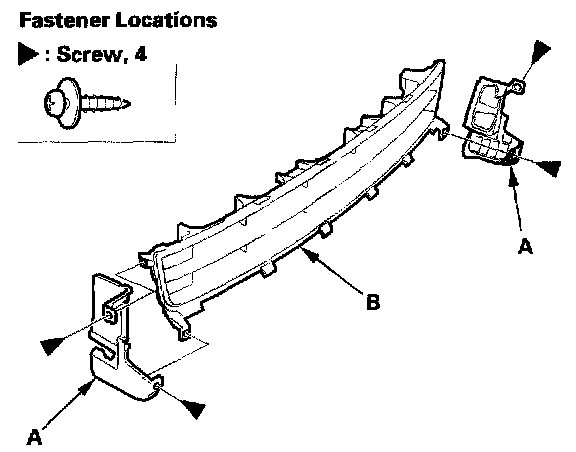

4. If necessary, remove the screws, then remove the air screen plates (A) from the lower front bumper grille (B).

5. Install the grille in the reverse order of removal, and push the hooks into place securely.
