Front Seat Slide Cable Replacement
Front Seat Slide Cable ReplacementNOTE:
- Put on gloves to protect your hands.
- Take care not to kink the cable.
1. Remove the front seat:
- Driver's seat.
- Passenger's seat.
2. Remove the front seat-back cover/pad from the seat-back frame,

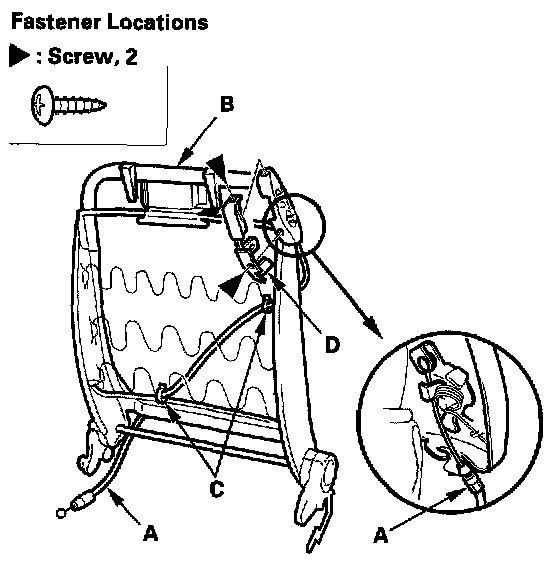

3. Remove the slide cable (A) from the seat-back frame (B).
1. Release the cable bands (C).
2. Remove the cable cover (D).
3. Disconnect the slide cable.
4. Install the cable in the reverse order of removal, and make sure the cable is connected securely.
