Rear Seat-Back Hinge Replacement

Rear Seat-back Hinge Replacement

NOTE:
- Put on gloves to protect your hands.
- Take care not to tear the seams or damage the seat covers.

1. Remove the rear seat assembly.

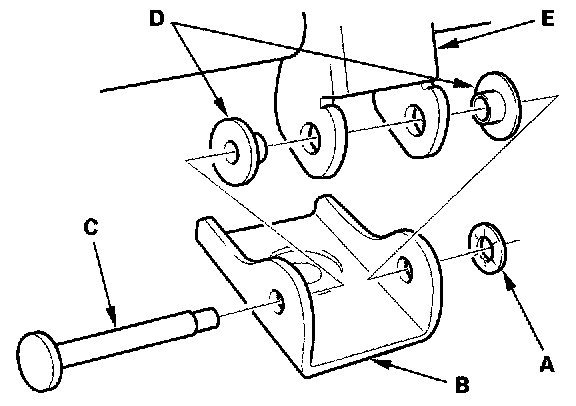

2. Release the push nut (A) from the seat-back hinge (B), then remove the pivot pin (C), pivot collars (D), and hinge from the seat-back frame (E). The inside hinge of each seat-back frame is shown. The outside hinges of them are symmetrical.
3. Reassemble the seat-back in the reverse order of disassembly, and replace any push nuts you removed with new ones.
