Water Pump: Testing and Inspection

Water Pump Inspection
1. Remove the drive belt.
2. Remove the water pump pulley and idler pulley.

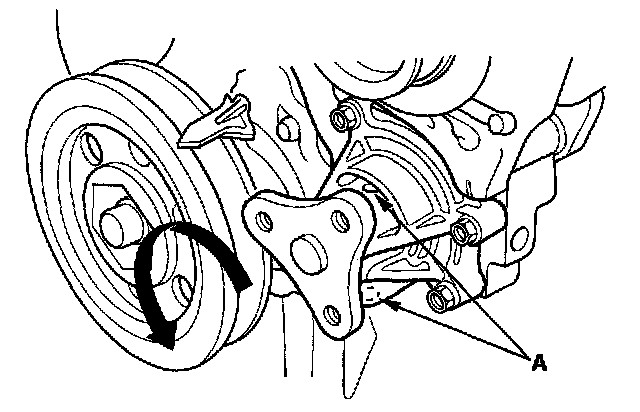

3. Turn the water pump counterclockwise. Check that it turns freely. If doesn't turn smoothly, replace the water pump.

NOTE: When you check the water pump, you may see a small amount of "weeping" from the bleed holes (A). This is normal.

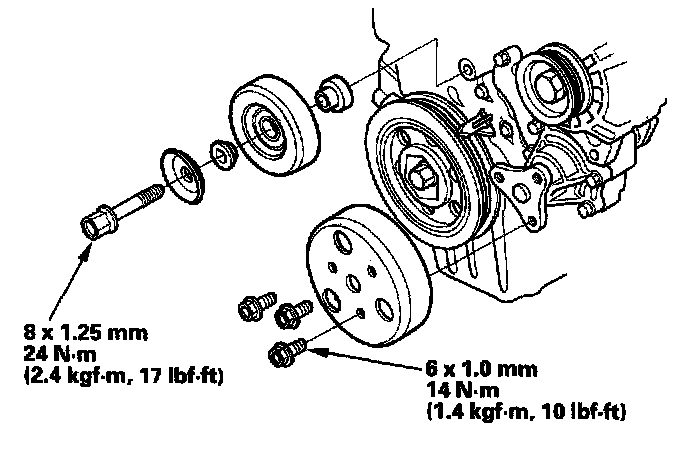

4. Install the water pump pulley and idler pulley.
5. Install the drive belt.
