EGR Passage Removal and Installation
EGR Passage Removal and Installation 1.
Drain the engine coolant.
2.

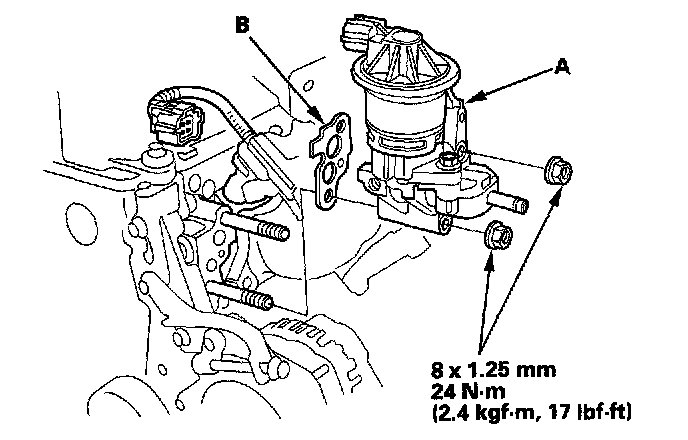

Remove the Exhaust Gas Recirculation (EGR) passage (A).
3.
Be sure the mounting surface is completely clean, then install the EGR passage, using the new gasket (B).
