Countershaft Disassembly

Countershaft Disassembly
1. Securely clamp the countershaft assembly in a bench vise with wood blocks (A).

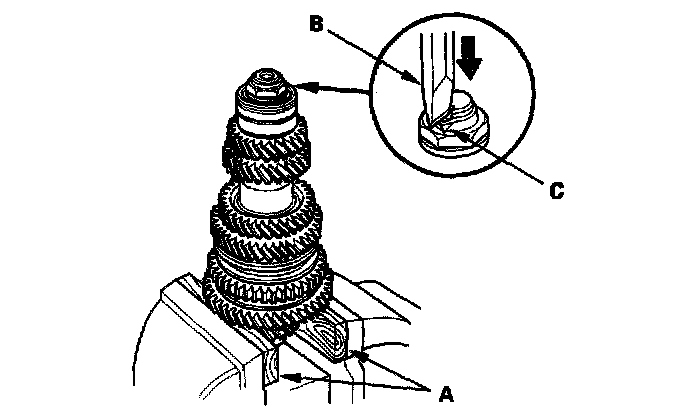

2. Use a chisel (B) to raise the locknut tab (C) from the groove in the countershaft.

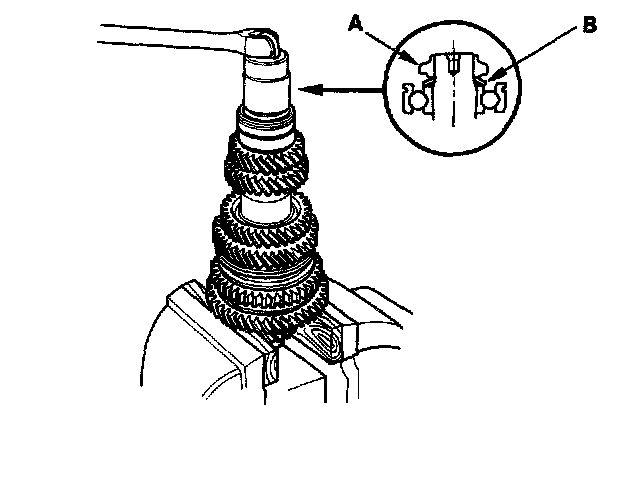

3. Remove the 22 mm locknut (left-hand threads) (A) and the 22 mm spring washer (B).

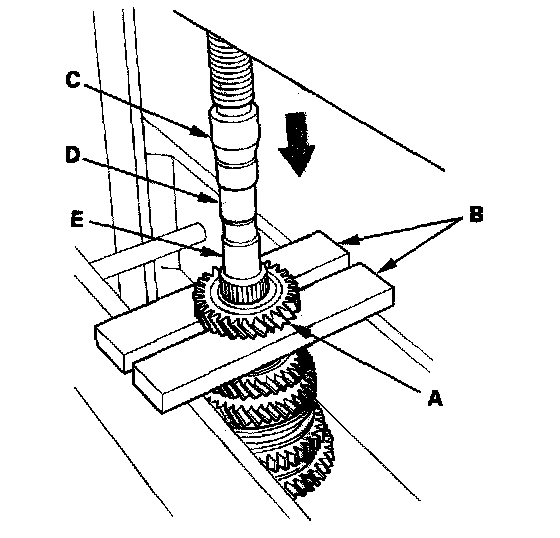

4. Support 5th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the ball bearing (F) and the needle bearing (G).

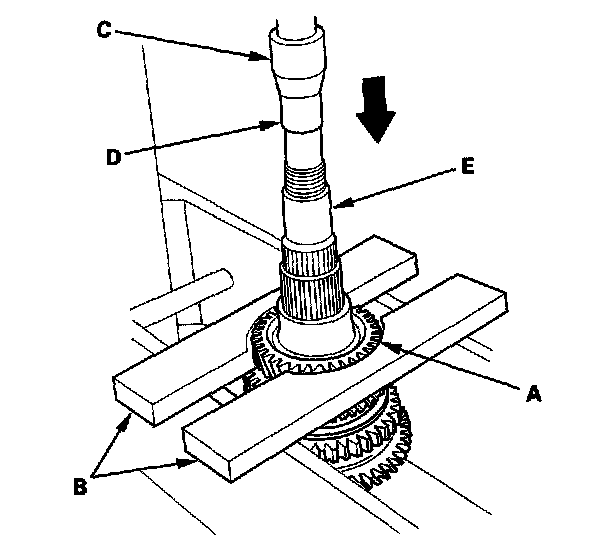

5. Support 4th gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the 4th gear.





6. Support 3rd gear (A) on steel blocks (B), then use a press (C) and an attachment (D) to press the countershaft (E) out of the 3rd gear.
