View 276-300: 284

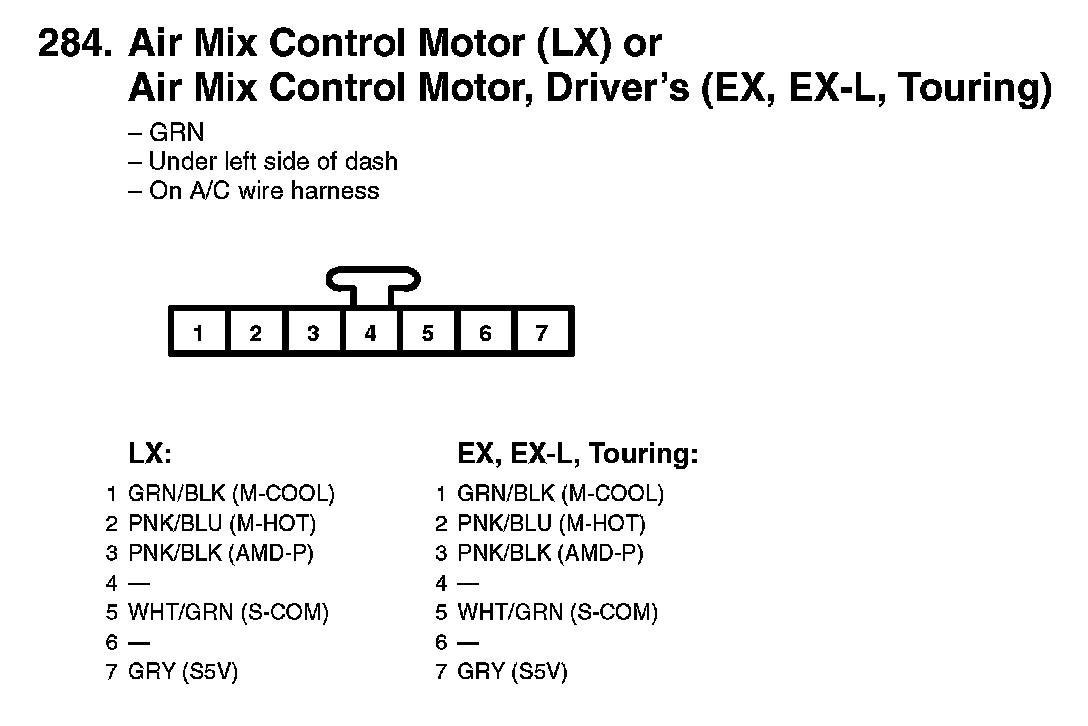

284. Air Mix Control Motor (LX) Or Air Mix Control Motor, Driver's (EX, EX-L, Touring):

View 276-300: 284

284. Air Mix Control Motor (LX) Or Air Mix Control Motor, Driver's (EX, EX-L, Touring):

285. Air Mix Control Motor, Front Passeger's (EX, Ex-L, Touring):

286. Air Mix Control Motor, Rear:

291. Mode Control Motor:

292. Mode Control Motor, Rear:

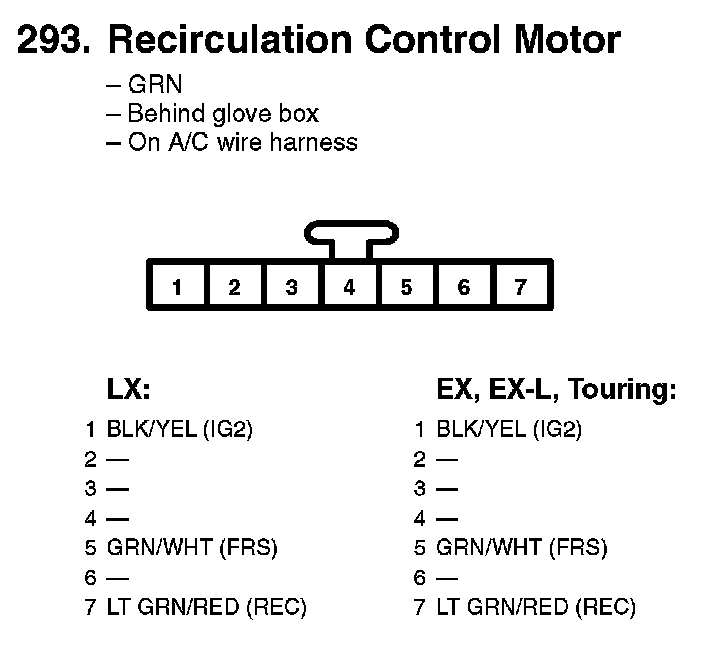

293. Recirculation Control Motor:
