Body Emblem: Service and Repair

Emblem Replacement

NOTE: When removing the emblems, take care not to scratch the body. Use dental floss to cut the adhesive safely.

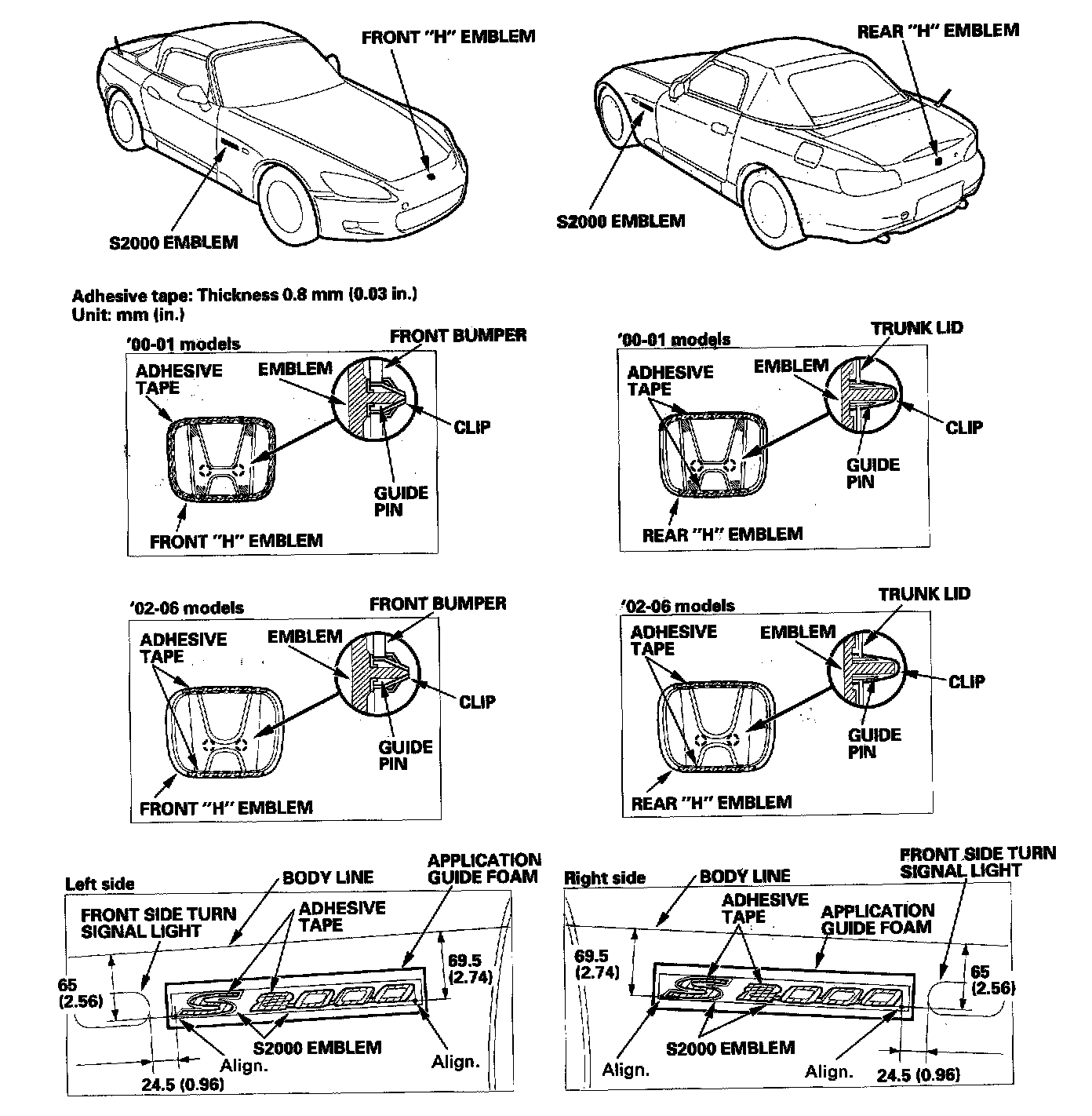

Apply the emblems where shown, and note these items:
- Clean the body surface with a sponge dampened in alcohol.




- After cleaning, keep oil, grease and water from getting on the surface.
