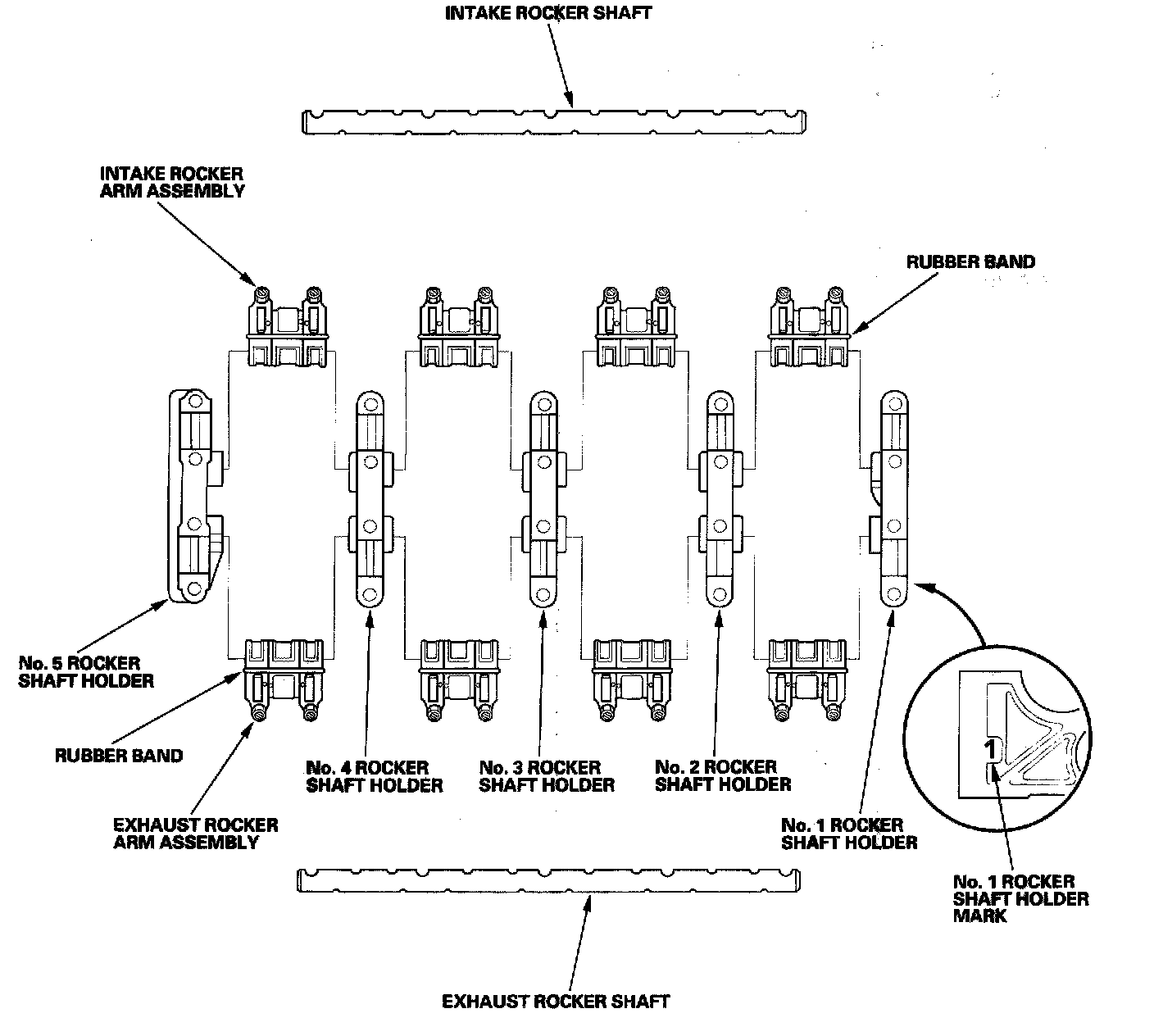

Rocker Arm and Shaft Disassembly/Reassembly

Rocker Arm and Shaft Disassembly/Reassembly





NOTE:
^ Identify parts as they are removed to ensure reinstallation in their original locations.
^ Inspect rocker shafts and rocker arms.
^ Rocker arms must be installed in the same position, if reused.
Prior to reassembling, clean all the parts in solvent, dry them, and apply new engine oil to any contact points.
^ Bundle the rocker arms with rubber bands to keep them together as a set.
^ When replacing the VTEC rocker arm assembly, remove the fastening hardware from the new VTEC rocker arm assembly.
