Center Mounted Brake Lamp: Service and Repair

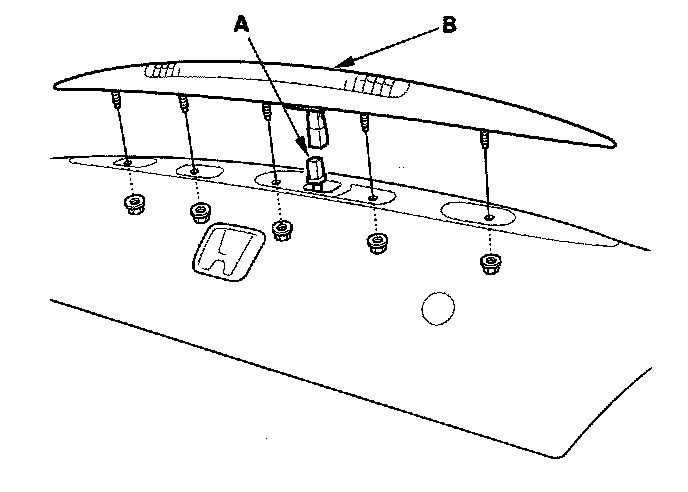

High Mount Brake Light Replacement 1.
Open the trunk lid.
2.
Disconnect the 2P connector (A) from the high mount brake light (B).
3.
Remove the five mounting nuts, then pull out the high mount brake light.
4.
Install the high mount brake light in the reverse order of removal.
5.
After installing the high mount brake light, run water over it to make sure it does not leak.
