6. Shift Arm Rod Assembly

Shift Arm Rod Assembly

Disassembly/Reassembly

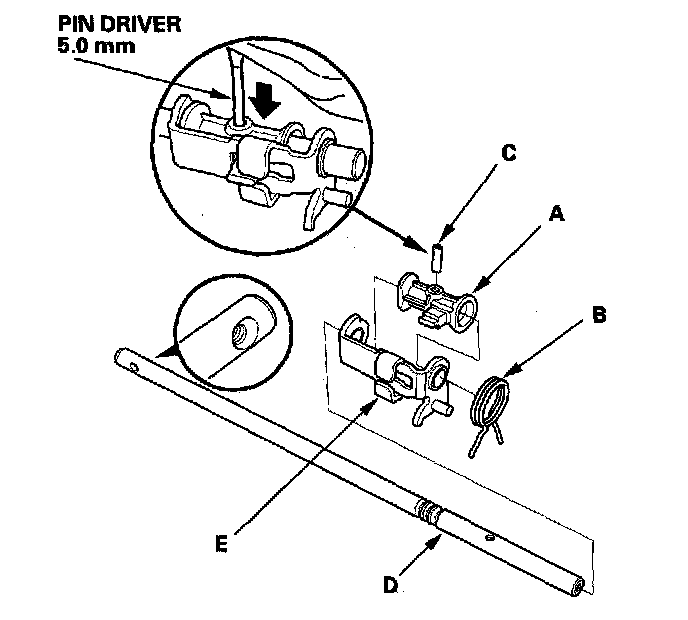

1. Remove the select return spring (B).
2. Remove the 5 x 25 spring pin (C) from shift arm A with a 5 mm pin driver, then remove the shift rod (D).
3. Remove shift arm A from the interlock (E).
4. Clean all the parts in solvent, dry them, and apply lubricate to any contact surfaces.
5. Install shift arm A to the interlock.
6. Install the shift rod and the new 5 x 25 spring pin.
7. Install the select return spring.
