Heated Glass Element: Testing and Inspection
Switch Text'06-07 models 1.
Remove the center console.
2.
Remove the rear window defogger switch (A) from the center console, then disconnect the 6P connector (B).
3.

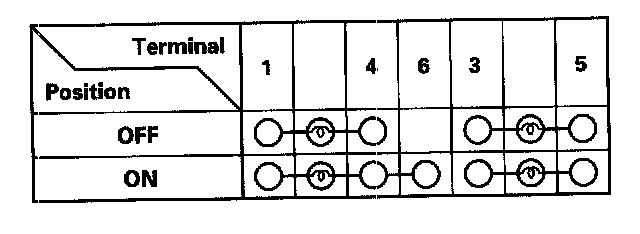

Check for continuity between the terminals in each switch position according to the table.
4.
If the continuity is not as specified, replace the bulbs (C) or the switch.
