Navigation Display: Service and Repair
Navigation Display Unit Removal/Installation 1.
Remove the audio unit, then remove the center display visor.
2.

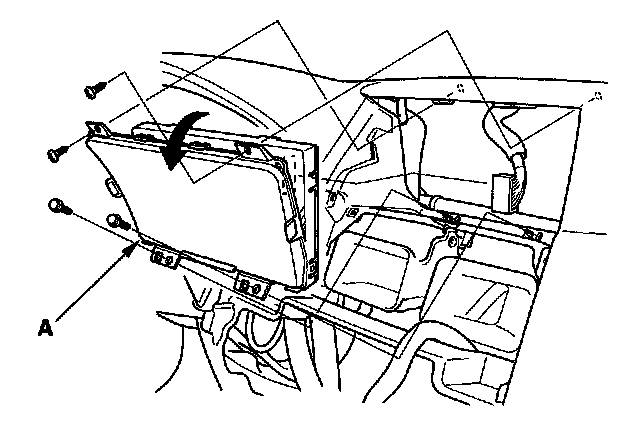

Remove the screws and bolts, then pull out the navigation display unit (A).
3.
Install the unit in the reverse order of removal. Be careful not to drop the forward screw behind the dashboard.
