Subframe: Service and Repair

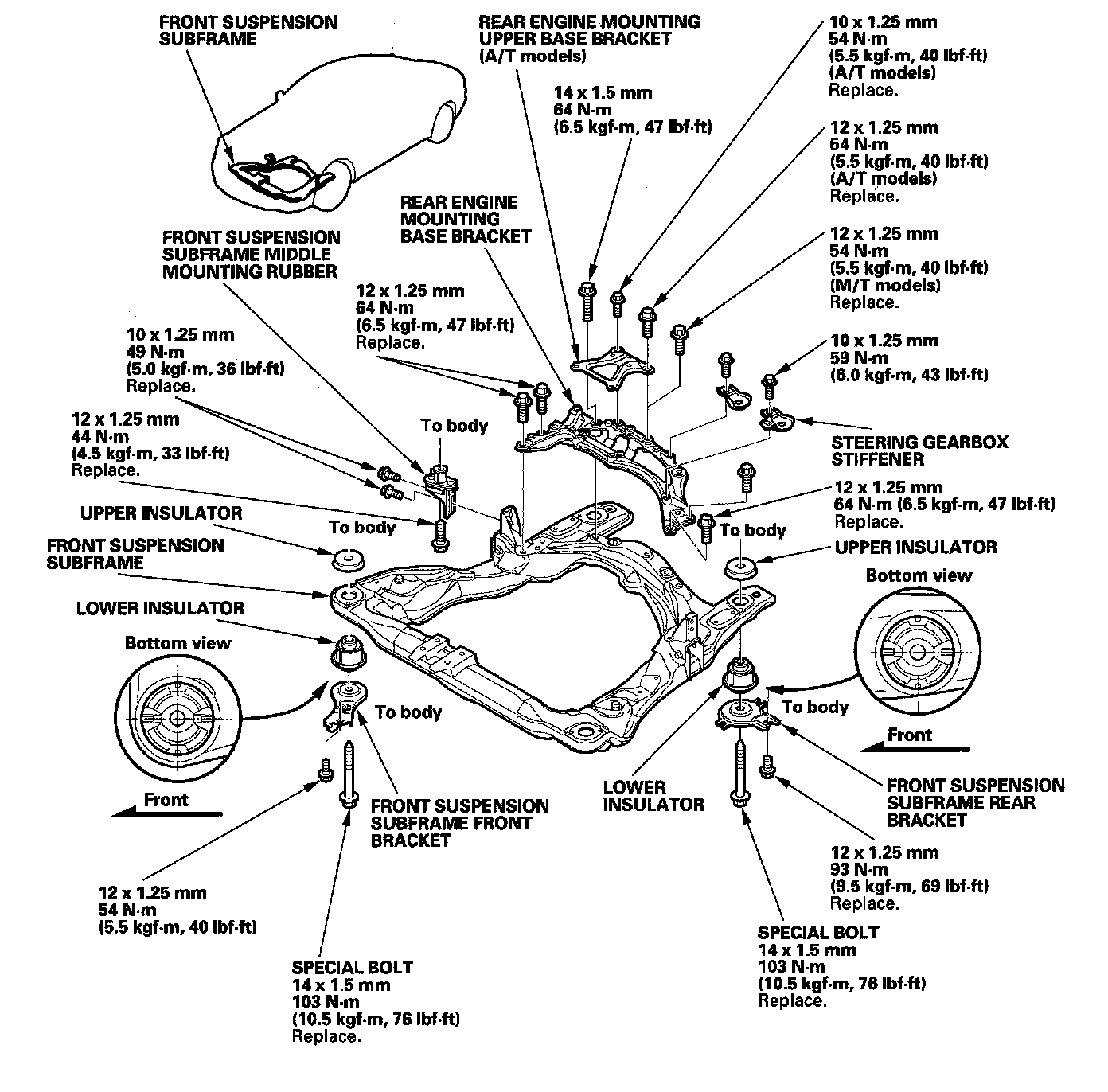

Subframe ReplacementFront Subframe TorqueAfter removing the subframe mounting bolts, the front
suspension subframe middle mounting rubber mounting bolts, the front suspension subframe rear bracket mounting bolts, the rear engine mounting base bracket mounting bolts, and the rear engine mounting upper base bracket mounting bolts (A/T models), be sure to replace them with new ones.
