System Specifications

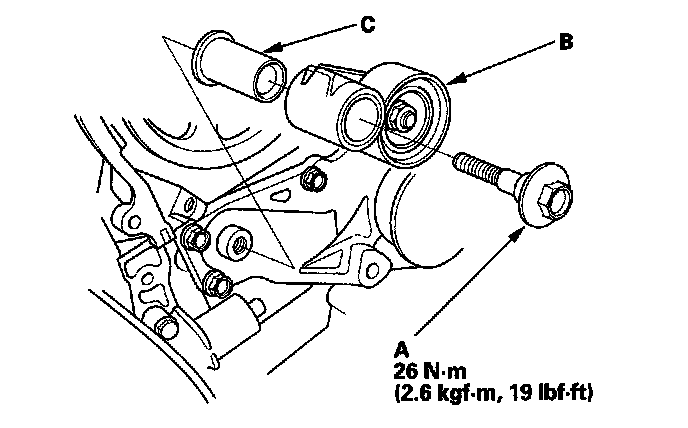

Timing Components Timing Belt Tensioner Torque
26 N-m (2.6 kgf-m, 19 lbf-ft)
Crankshaft Pulley Torque
65 N-m (6.5 kgf-m, 48 lbf-ft)
Tighten the bolt an additional 60°
Timing Cover Install the lower cover.
Install the front upper cover (A) and the rear upper cover (B).
