Front Undercover Replacement

Front Undercover Replacement

NOTE:
- Take care not to scratch the body.
- Put on gloves to protect your hands.
- Have an assistant help you when removing and installing the undercover.

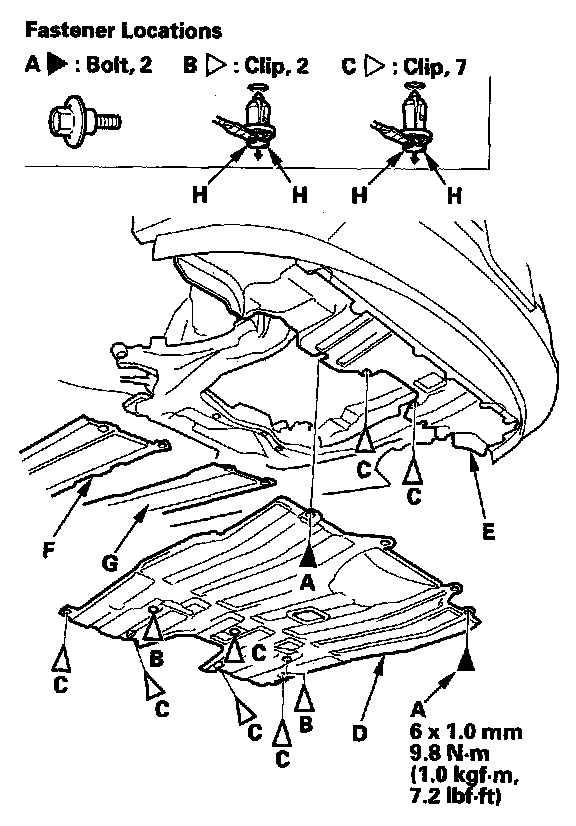

1. Remove the bolts (A), and the clips (B, C), then remove the front undercover (D) from the splash shield (E), the right front floor undercover (F), and the left front floor undercover (G).

NOTE: To remove the clips B and C, pry the inner pin up at the edge near the line (H) on its head.






2. Install the undercover in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
