Motor Housing Removal/Installation
Motor Housing Removal/Installation 1.
Remove the IMA motor rotor.
2.

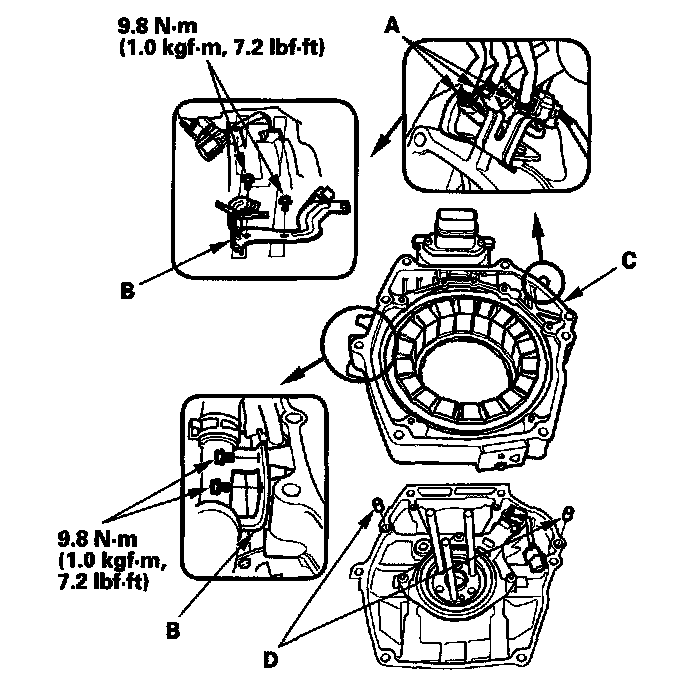

Remove the connectors (A) and the stays (B)>
3.
Remove the motor housing (C).
NOTE: Set dowel pins (D) in the motor housing before installing the motor stator on the engine.
4.
Install the parts in the reverse order of removal.
5.
Install the IMA motor rotor.
6.
Do the motor rotor position calibration.
