Alignment
Caster angle Caster angle
7°06'±1°
Camber angle Front
-0°03'±30'
Maximum difference between the front right and left side
0°35'
Rear
-1°39' + 1°05' - 0°45'
Toe-in Front toe-in
0±2 mm (0±0.08 in.)
Rear toe-in
2+2-1 mm (0.08+0.08-0.04 in.)

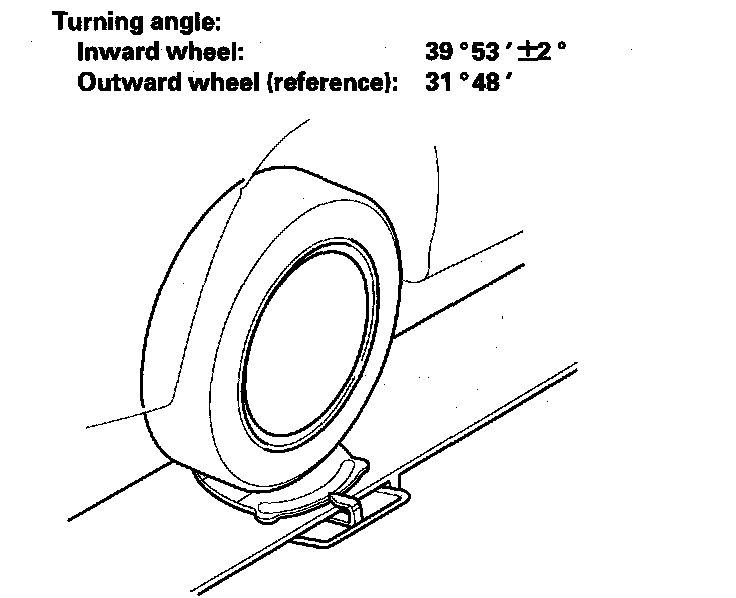

Turning angle
