Crankshaft Main Bearing
Crankshaft Bearing

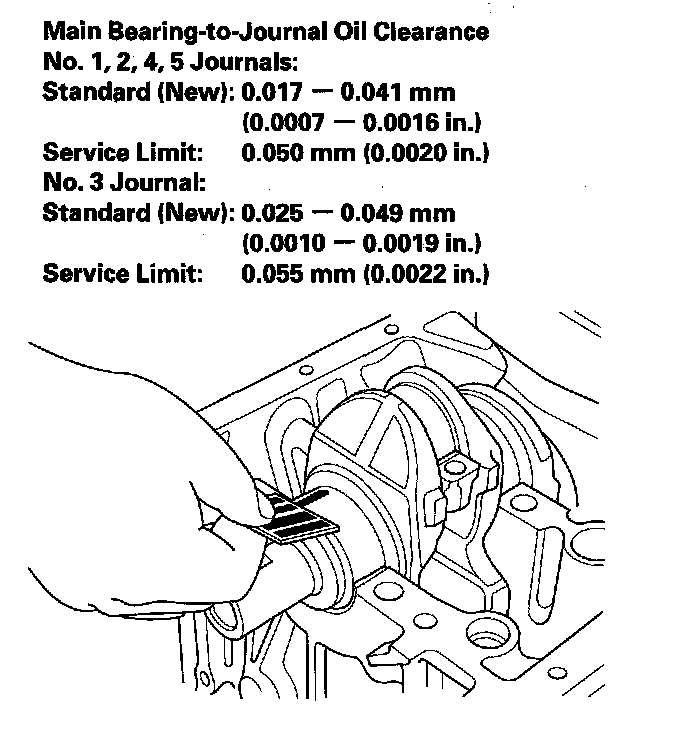

Main Bearing
Torque the bolts in sequence to 29 Nm (3.0 kgf-m, 22 lbf-ft) + 56°
Torque the 8mm bolts in sequence to 22 Nm (2.2 kgf-m, 16 lbf-ft)
Main Journal Code
Main Bearing
Torque the bolts in sequence to 29 Nm (3.0 kgf-m, 22 lbf-ft) + 56°
Torque the 8mm bolts in sequence to 22 Nm (2.2 kgf-m, 16 lbf-ft)
Main Journal Code
