Mirror Holder Replacement

Mirror Holder Replacement




1. Carefully pull out the bottom edge of the mirror holder (A) by hand. Take care not to scratch the mirror.

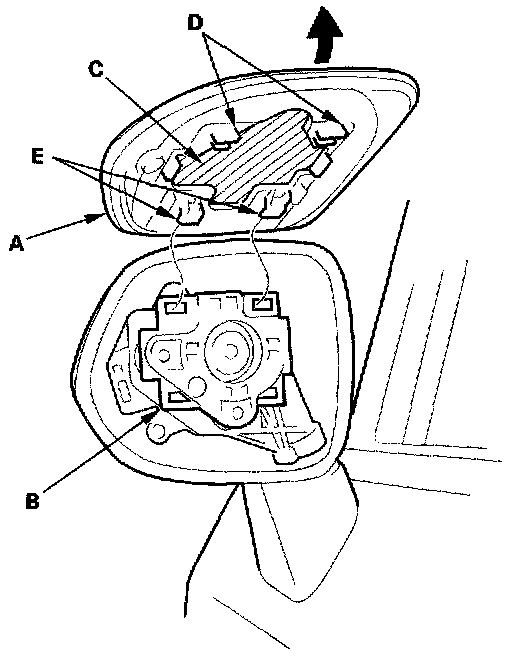

2. Separate the mirror holder from the actuator (B) by slowly pulling them apart while separating the adhesive portion (C), detaching the clips (D), and releasing the hooks (E).

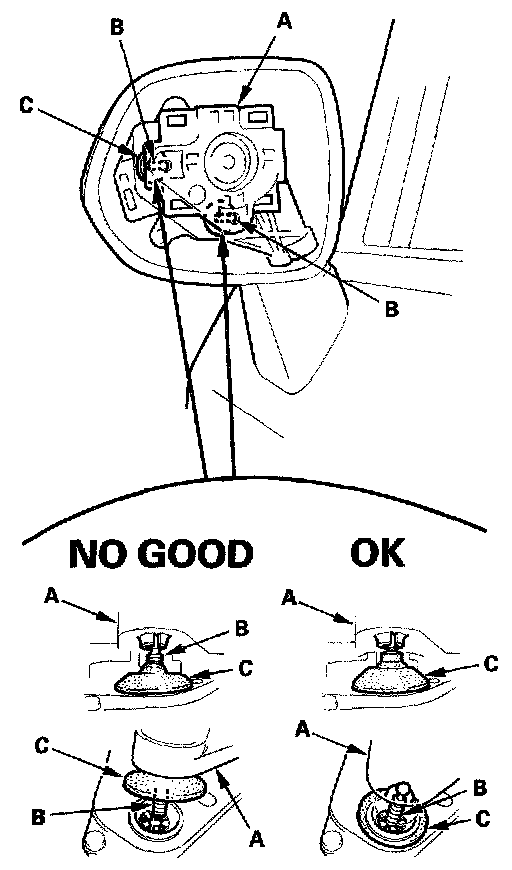

3. Before reinstalling the mirror holder to the inner holder (A) of the actuator, check the actuator rods (B) and the actuator boots (C):
- If each rod is off the actuator hole, insert it securely.
- Each rod should be covered with a boot. If not, adjust the boot into the proper position.

4. Reattach the hooks of the mirror holder to the actuator, then position the mirror holder on the actuator. Carefully push on the clip portions of the mirror holder until the mirror holder locks into place.
5. Check the actuator operation.
