Wheel Speed Sensor: Service and Repair

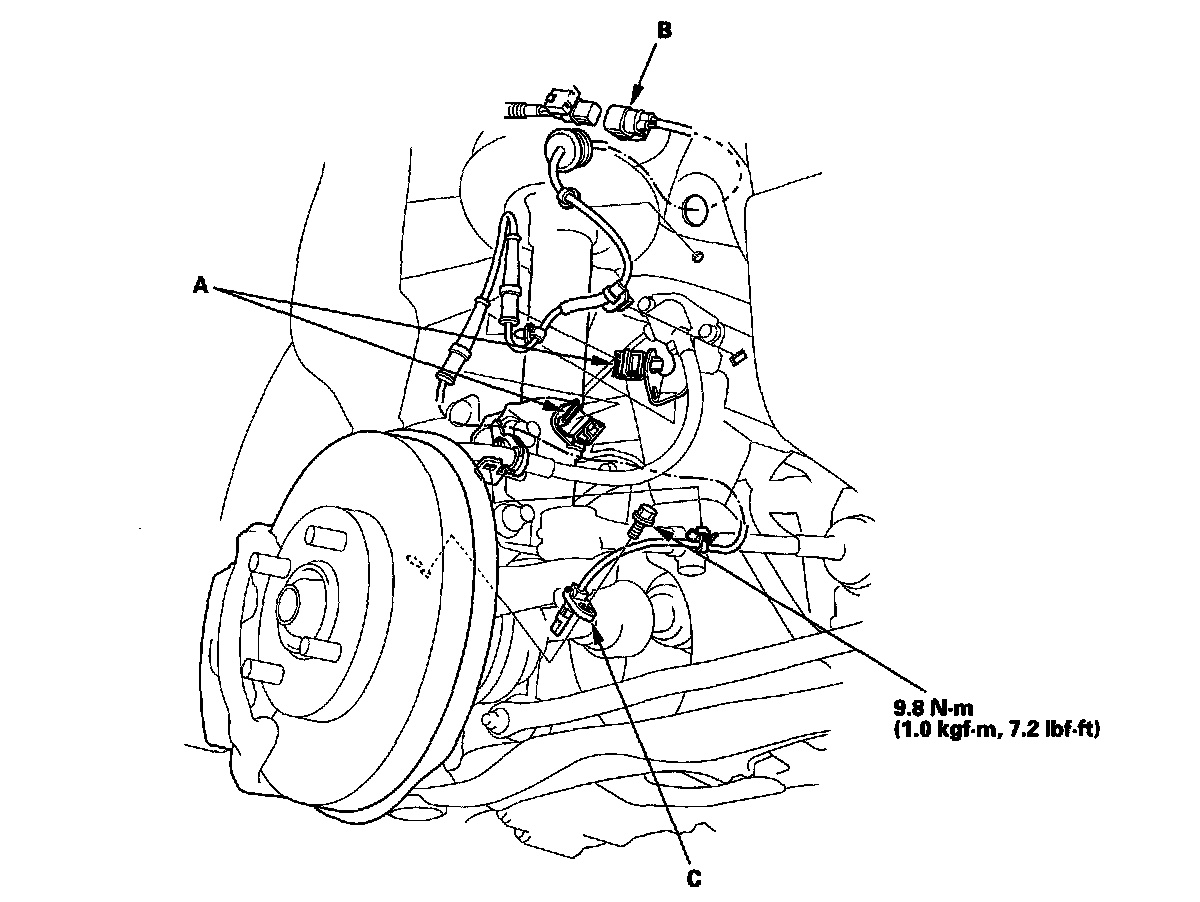

Wheel Speed Sensor ReplacementFront
1. Make sure the ignition switch is OFF.
2. Release the connector holding clamps (A), then disconnect the wheel speed sensor connector (B).
3. Remove the clips, the bolt, and the wheel speed sensor (C).
4. Install the wheel speed sensor in the reverse order of removal, and note these items:
^ Install the sensor carefully to avoid twisting the wires.
^ If the wheel speed sensor comes in contact with the wheel bearing, it is faulty.
5. Start the engine, and check that the ABS indicator goes off.
6. Test-drive the vehicle, and check that the ABS indicator does not come on.

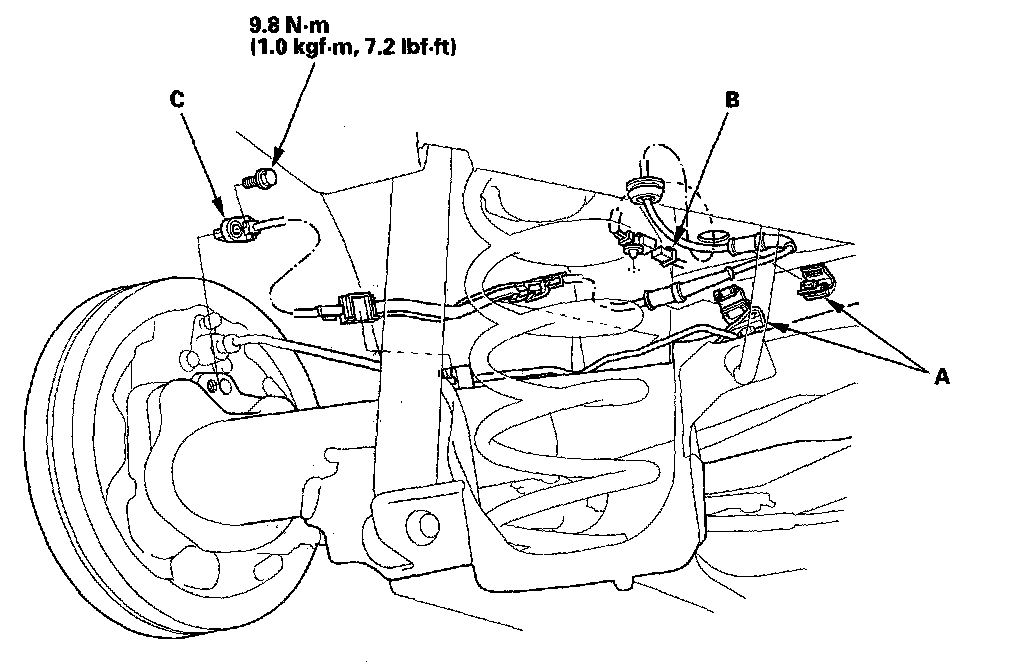

Rear
1. Make sure the ignition switch is OFF.
2. Release the connector holding clamps (A), then disconnect the wheel speed sensor connector (B).
3. Remove the clips, the bolt, and the wheel speed sensor (C).
4. Install the wheel speed sensor in the reverse order of removal, and note these items:
^ Install the sensor carefully to avoid twisting the wires.
^ If the wheel speed sensor comes in contact with the hub bearing unit, it is faulty.
5. Start the engine, and check that the ABS indicator goes off.
6. Test-drive the vehicle, and check that the ABS indicator does not come on.
