Blower Unit Component Replacement
Blower Unit Component ReplacementNOTE: The these items when overhauling the blower unit.
-

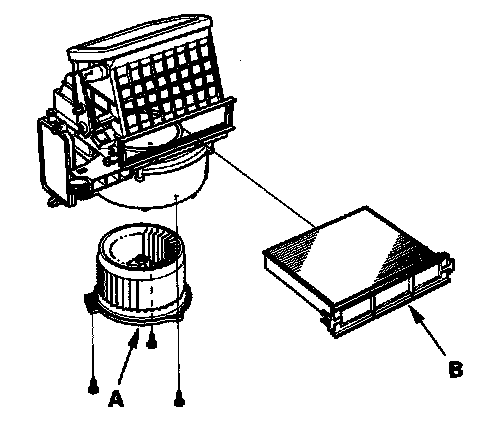

The
blower motor (A) and the dust and pollen filter (B) can be placed without removing the blower unit.
-
Before reassembly, make sure that the recirculation control linkage and door move smoothly.
