Blower Unit Removal/Installation

Blower Unit Removal/Installation

1. Remove the dashboard.
2. Disconnect the recirculation control cable from the recirculation control linkage.

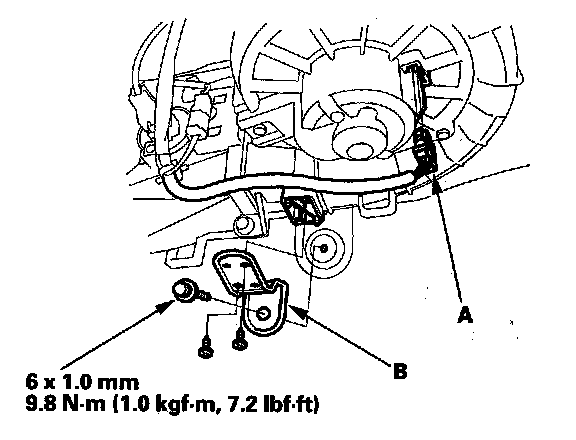

3. Disconnect the connector (A) from the blower motor, then remove the mounting bolt, the self-tapping screws, and the bracket (B).

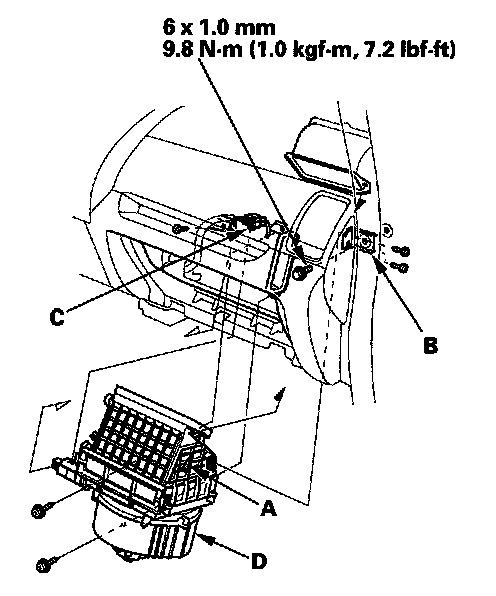

4. Remove the clip (A). Remove the mounting bolt, the screws, and the bracket (B). Remove the connector clip (C). Remove the self-tapping screws and the blower unit (D).






5. Install the blower unit in the reverse order of removal. Make sure that there is no air leakage.
