Mode Control Switch Test
Mode Control Switch Test 1.
Remove the heater-A/C control panel.
2.

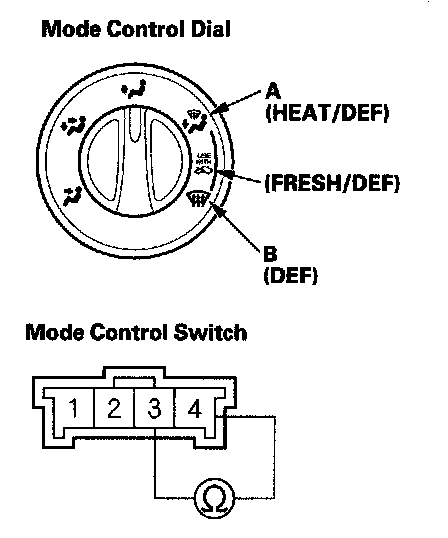

Check for continuity between No. 3 and No. 4 terminals while rotating the mode control dial from (A) to (B).
3.
If there is no continuity, replace the heater-A/C control panel.
